Hastelloy Sheets, Plates and Coils Supplier
- Home
- Hastelloy Sheets, Plates and Coils Supplier
Products
Dedicated Customer Teams & Agile Services
Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines are met.
Hastelloy C22 Sheets, Hastelloy Cold Rolled Coils, Hastelloy Alloy C276 Coils, Hastelloy HR Sheets and Plate Manufacturer, NW 0276, NW 6022 Sheets, UNS N10276, N06022, N10665 Plate, ASTM B575 Hastelloy B2 Plates, Alloy B2 Coils, Alloy 2.4360, 2.4375, 2.4617 Sheets, Hastelloy Industrial Sheets, Plates and Coils Supplier in Pune India.
Om Steel is one of the prime manufacturers of Hastelloy C22 / C276 / B2 Sheets, Plates and Coils that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Hastelloy C276 Sheets and Plates is a most adaptable nickel-molybdenum-chromium-tungsten alloy by means of first-rate general corrosion resistance and first-rate fabricability. Hastelloy C22 Sheets and Plates is a most resourceful nickel-chromium-molybdenum-tungsten alloy by means of enhanced resistance to both localized and uniform corrosion also to an extensive range of mixed industrial chemicals. Hastelloy B2 Sheets and Plates is a nickel-base shaped alloy by means of having exceptional resistance to hydrochloric acid at all temperatures and concentrations. Meanwhile, these Hastelloy C22/C276/B2 Sheets, plates and coils can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients

Hastelloy Alloy C276 Slit Coils, Alloy C22 Perforated Sheets, Hastelloy B2 Shim Sheets, Alloy C22, C276, B2 Strips, ASME SB575 Alloy C276 Sheets Stockist, Hastelloy B2 Chequered Plate, Hastelloy C22, C276, B2 Sheets, Plates, Coils Exporter in Pune India.
Specification of Hastelloy C22, C276, B2 Sheets, Plates, Coils
Specifications : ASTM B575 / ASME SB575
Dimensions : ASTM, ASME, and API
Size : 15NB to 150NB In
Thickness : from 2 to 40 mm
Prodction : Hot-Rolled (HR) / Cold-Rolled (CR)
Grade : Hastelloy UNS (N10276, N06022, N10665), DIN (2.4819, 2.4602, 2.4617)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Available Types of Hastelloy Alloy C22, C276, B2 Sheets and Plates, Coils

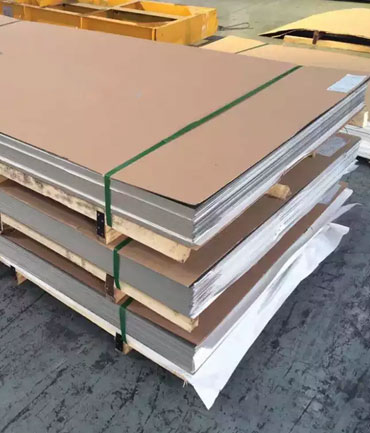

Hastelloy C22, C276, B2 Sheets
Hastelloy Alloy C22, C276, B2 Sheets
Hastelloy C22 Cold Rolled Sheets, Alloy C276 2B Finish Sheet, High Hastelloy B2 No.1 Mirror Finish Sheets, Hastelloy Alloy UNS N06022 CR Sheets, Alloy N10276 Hot Rolled Sheets, Hastelloy Alloy 2.4375 Sheets Supplier, Alloy 2.4360, 2.4617 Sheets Exporter.

Hastelloy C22, C276, B2 Plates
Hastelloy Alloy C22, C276, B2 Plates
Hastelloy C22 Cold Rolled Plates, Alloy C276 2B Finish Plate, High Hastelloy B2 No.1 Mirror Finish Plates, Hastelloy Alloy UNS N06022 CR Plates, Alloy N10276 Hot Rolled Plates, Hastelloy Alloy 2.4375 Plates Supplier, Alloy 2.4360, 2.4617 Plates Exporter.

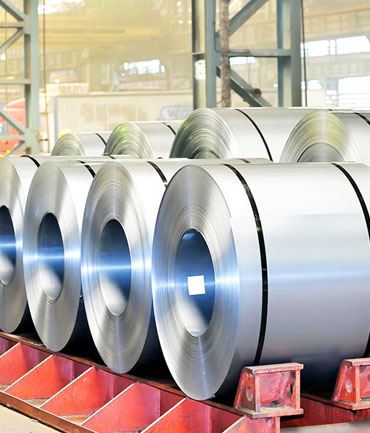

Hastelloy C22, C276, B2 Coils
Hastelloy Alloy C22, C276, B2 Coils
Hastelloy C22 Cold Rolled Coils, Alloy C276 2B Finish Coil, High Hastelloy B2 No.1 Mirror Finish Coils, Hastelloy Alloy UNS N06022 CR Coils, Alloy N10276 Hot Rolled Coils, Hastelloy Alloy 2.4375 Coils Supplier, Alloy 2.4360, 2.4617 Coils Exporter.
Equivalent Grades of Hastelloy C22 / C276 / B2 Sheets, Plates and Coils
STANDARD | UNS | WNR. | JIS | GOST | EN | OR |
Hastelloy C276 | N10276 | 2.4819 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Hastelloy C22 | N06022 | 2.4602 | NW 6022 | – | NiCr21Mo14W | – |
Hastelloy B2 | N10665 | 2.4617 | – | – | – | – |
Chemical Composition of Hastelloy C22, C276, B2 Sheets and Plates, Coils
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
Hastelloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
Alloy C22 / C276 / B2 Sheets, Plate, Coils Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
People also search about Alloy C22, C276, B2 Sheets and Plate, Coils
hastelloy c276 sheets supplier in india, alloy c22, c276, b2 sheet and plate coils sockist in mumbai, hastelloy 2.4375 sheet plate exporter in india, hastelloy n10276 plate exporter, alloy b2 plates trader in mumbai, astm b575 hastelloy alloy c22 coils, b575 hastelloy c276 sheet plate, alloy 2.4360 2d/ba/no.4/no.8/8k sheet plate and coil, hastelloy c276 sheet plate stockist in mumbai, b2 hastelloy no.4 / #8 / mirror 8k finish sheet plate, hastelloy n10276 sheet price list, c22 hastelloy plate specification, alloy n10665 sheet plate manufacturer, hastelloy b2 sheet chemical composition, hastelloy c22 plates supplier, hastelloy c22, c276, b2 sheet price list, 26 gauge hastelloy alloy c22/c276/b2 sheet and plate, alloy c22 sheet sizes, 16 gauge hastelloy c22, c276, b2 plate, hastelloy n06022 coils mechanical properties, hastelloy c22 plate thickness, c276 hastelloy sheet gauge, hastelloy alloy b2 sheets & plate gauge, hastelloy 2.4617 sheet and plates coils cut to size, astm b575 alloy c276 sheet plate coil dealer in india.
