Our worldwide presence ensures the timeliness, cost efficiency compliance adherence required to ensure your production timelines are met.
Inconel Alloy 718 Seamless Tubing, ASTM B516 Alloy 601 Tube, Inconel Alloy 600 Tube, Inconel 625 Tubes, Inconel Alloy 2.4816 Pipes, Inconel Alloy 600 Tubes, Nickel 625 Pipes, Alloy 601 Tubes Manufacturer in Pune India.

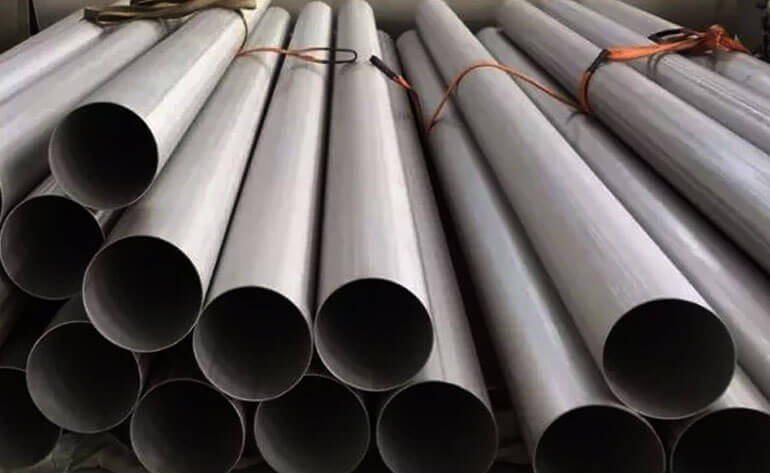

Om Steel is one of the prime manufacturers of Inconel 600 / 601 / 625 / 718 Pipes and Tubes that are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products. Inconel 600 Pipes (Alloy 600) is a nickel-chromium alloy used for appliances that want corrosion and superior temperature resistance. Inconel 601 Pipes (Alloy 601) is a nickel-chromium alloy used for appliances that need resistance to corrosion and heat. Inconel 625 Pipes (Alloy 625) is an oxidation and corrosion resistant nickel alloy that is used together for its soaring strength and exceptional aqueous corrosion resistance. Inconel 718 Pipes (Alloy 718) is a nickel-chromium-molybdenum alloy intended to defy an extensive range of sternly corrosive situations, crevice and pitting corrosion. Also referred as UNS N06600, UNS N06601, UNS N06625 and UNS N07718, these pipes and tubes respectively can further be customized in terms of sizes and thicknesses as per specific requirements given by our esteemed clients. And also referred as WNR 2.4816, WNR 2.4851, WNR 2.4856 and WNR 2.4668, we offer the same at market leading prices.
Alloy 718 Seamless Pipes, Nickel 600 Welded Tubes, Inconel UNS N06601 Seamlees Tubing, ASME SB517 Inconel Alloy 601 Pipes/Tubes Exporter, Inconel 718 Pipes, Alloy 601 Tubing, Inconel 625 Tubes Supplier in Pune India.
Specification of Inconel Alloy 600, 601, 625 ,718 Pipes/Tubes
Pipe/Tube Specifications:ASTM B167, B517, B516 / ASME SB167, SB517, SB516
Dimensions:ASTM, ASME
Pipe Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Tube Outside Diameter: 1/8″ OD TO 2″OD 3MM OD TO 38 MM OD
Range:1/2” OD up to 5” OD, customs diameters also available
Type: Seamless / ERW / Welded / Capillary Tubes
Form: Round Tube, Square Tube, Rectangular Tube
Length: Single Random, Double Random & Required Length
End: Plain End, Beveled End, Treaded
End Protection: Plastic Caps
Finish: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
External Coating: 3LPE / 3LPP/ FBE/ DFBE/ PP
Available Types of Inconel Alloy 600, 601, 625 ,718 Pipes/Tubes
Inconel Alloy 601 Seamless Tubes
Inconel Alloy
ASTM B516 Inconel Alloy 601 Seamless Tubes, Inconel Alloy 625 Seamless Tube, AS 600 Seamless Piping, Inconel Alloy N06600 Seamless Tubes Supplier, Nickel Alloy 2.4816 Seamless Tubes Exporter.
Alloy 625 Seamless Tubes
Inconel Alloy
ASTM B167 Inconel Alloy 600 Seamless Tubes, Alloy 718 Seamless Tube, Inconel Alloy 601 Seamless Tubing, Nickel Alloy N06601 Seamless Tubes Supplier, Alloy 2.4851 Seamless Tubes Exporter.
Inconel Alloy 718 Round Tubes
Inconel Alloy
ASTM B517 Nickel Alloy 718 Seamless Tubes, Inconel Alloy 601 Seamless Tubing, Inconel Alloy 625 Seamless Tubing, Alloy N07718 Seamless Tubing Supplier, Alloy 2.4851 Seamless Tubes Exporter.
Equivalent Grades of Inconel Alloy 600, 601, 625 ,718 Pipes/ Tubes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Chemical Composition of Inconel Alloy 600, 601, 625 ,718 Pipes/ Tubes
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel Alloy 600, 601, 625 ,718 Pipes/ Tubes Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
