316 Stainless Steel Forged Fittings
316L Stainless Steel Forged Fittings
316 Stainless Steel Forged Fittings 316L Stainless Steel Forged Fittings
62 Reviews
Product Description:
316 and 316L stainless steel forged fittings are high-performance components specifically designed for applications requiring superior corrosion resistance, high strength, and durability. These fittings are ideal for industries where chemical exposure, high temperatures, and environmental challenges are prevalent.
316 Stainless Steel
- Known for its excellent corrosion resistance due to molybdenum content.
- High strength and durability in both low and high-temperature applications.
- Suitable for environments with chlorides and industrial solvents.
316L Stainless Steel
- A low-carbon version of 316, designed to minimize carbide precipitation during welding.
- Offers enhanced weldability and corrosion resistance, particularly in highly corrosive environments.
- Ideal for applications requiring frequent welding or exposure to corrosive agents.
Key Features of 316/316L Stainless Steel Forged Fittings
- Superior Corrosion Resistance: Excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking.
- High-Temperature Performance: Retains mechanical properties in environments up to 870°C.
- Exceptional Strength: Provides excellent tensile and yield strength for demanding applications.
- Non-Magnetic: In the annealed condition, these fittings are non-magnetic.
- Ease of Fabrication: Easily machined, welded, and fabricated for custom requirements.
Common Applications
- Chemical Processing: Pipes and fittings for handling acidic and chloride-rich solutions.
- Marine Environments: Piping systems exposed to seawater and saltwater spray.
- Pharmaceutical Industry: High-purity and sterile environments for manufacturing.
- Food Processing: Equipment and piping for acidic or salty food and beverage processing.
- Oil and Gas: Offshore drilling and refining equipment.
- Power Generation: High-temperature piping systems in thermal and nuclear power plants.

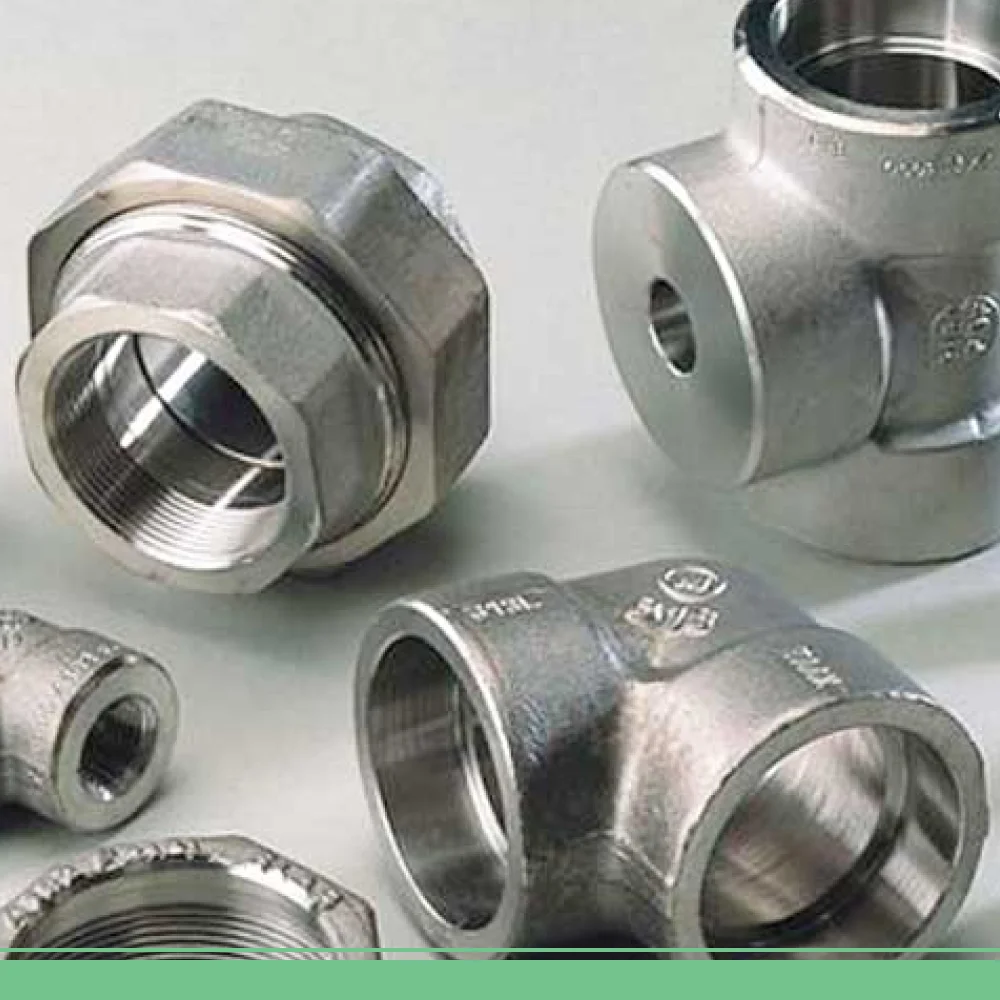

Types of Forged Fittings
- Elbows (45° and 90°): For directional changes in pipelines.
- Tees: Allow branching or flow division.
- Couplings: Connect pipes of the same or different diameters.
- Unions: Provide easy disassembly and assembly of pipelines.
- Caps: Seal the end of pipes.
- Plugs: Close off pipe ends or outlets.
Specifications and Standards
- Manufacturing Standards: ASTM A182, ASME B16.11, MSS SP-79, SP-83, SP-95.
- Pressure Ratings: Class 2000, Class 3000, Class 6000, Class 9000.
- Thread Types: NPT (National Pipe Thread), BSP (British Standard Pipe).
Available Sizes
- Sizes: 1/8″ to 4″ (DN6 to DN100).
- Custom Sizes: Available upon request for specific project requirements.
Surface Finishes
- Machined Finish: Precision machining ensures tight tolerances.
- Pickled Finish: Enhanced corrosion resistance through chemical treatment.
- Electropolished: Ideal for high-purity or aesthetic applications.
Value-Added Services
- Custom Fabrication: Tailored solutions to meet unique piping requirements.
- Heat Treatment: Annealing and stress-relieving for optimal mechanical properties.
- Inspection and Testing: Includes hydrostatic, ultrasonic, and third-party certifications.
- Marking and Certification: All fittings are marked with grade, size, and heat number for traceability.
Contact Us for High-Quality Stainless Steel Forged Fittings
Get in touch today for high-quality 316 and 316L stainless steel forged fittings. Our expert team offers tailored solutions, competitive pricing, and superior customer service for all your piping system needs.
Mechanical
Properties
| Property | 316 | 316L |
|---|---|---|
| Tensile Strength (MPa) | 515 (minimum) | 485 (minimum) |
| Yield Strength (MPa) | 205 (minimum) | 170 (minimum) |
| Elongation (%) | 40 | 40 |
| Hardness (HRB) | 95 (maximum) | 95 (maximum) |
Chemical
Composition
| Element | 304 (%) | 304L (%) |
|---|---|---|
| Carbon (C) | 0.08 (maximum) | 0.03 (maximum) |
| Chromium (Cr) | 18.0–20.0 | 18.0–20.0 |
| Nickel (Ni) | 8.0–10.5 | 8.0–12.0 |
| Manganese (Mn) | 2.0 (maximum) | 2.0 (maximum) |
| Silicon (Si) | 0.75 (maximum) | 0.75 (maximum) |
| Sulfur (S) | 0.03 (maximum) | 0.03 (maximum) |
| Phosphorus (P) | 0.045 (maximum) | 0.045 (maximum) |
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Explore Our
Products
Ask Anything
Do you have any questions?
What is the main difference between 316 and 316L stainless steel forged fittings?
Are 316/316L stainless steel forged fittings suitable for marine applications?
Can these fittings handle high-pressure and high-temperature applications?
