Titanium Plates from Om Steel are the preferred choice for industries seeking high-quality metal plates with exceptional strength, lightweight properties, and outstanding corrosion resistance. As a trusted provider of top-grade metal products, we offer a comprehensive range of titanium plates designed to meet diverse industry needs.
Our titanium plates are meticulously crafted using premium-grade titanium and advanced manufacturing techniques to ensure superior performance and durability. Titanium is widely recognized for its remarkable strength-to-weight ratio, making it an ideal material for applications where weight reduction is critical without compromising structural integrity.
Om Steel provides titanium plates in various grades, sizes, and thicknesses to cater to different applications. Whether you require plates for aerospace, automotive, medical, or industrial purposes, our wide selection ensures that you find the perfect solution for your specific requirements.
With their exceptional corrosion resistance, titanium plates offer long-lasting performance in challenging environments, including marine, chemical, and offshore applications. They can withstand extreme temperatures, making them suitable for high-temperature environments where other materials may falter.
At Om Steel, we prioritize quality and customer satisfaction. Our titanium plates undergo rigorous testing and quality control procedures to ensure they meet or exceed industry standards. Our experienced team is ready to assist you in selecting the right grade and size of titanium plates to meet your specific needs.
Cold Rolling Titanium Plates Vs Hot Rolling Titanium Plates
Cold Rolling Titanium Plates
Cold rolling of titanium plates involves passing the metal through a set of rollers at room temperature. This process offers different advantages. Cold rolling results in a smoother surface finish, with tighter dimensional tolerances and improved flatness. It also increases the yield strength and hardness of the titanium, making it suitable for applications that require high strength. Additionally, cold-rolled titanium plates exhibit excellent surface uniformity and can be easily formed and fabricated.
Hot Rolling Titanium Plates
Hot rolling of titanium plates involves heating the metal above its recrystallization temperature and then passing it through a series of rollers to reduce the thickness and shape it into the desired dimensions. This process offers several benefits. Firstly, hot rolling allows for a greater reduction in thickness, resulting in thinner plates. Secondly, it improves the mechanical properties of the titanium, such as strength and toughness. Lastly, hot rolling helps to refine the microstructure of the metal, enhancing its overall quality.
Types of Titanium Plates
Titanium plates are available in various types, each designed to meet specific requirements and applications. Here are some common types of titanium plates:
Commercially Pure Titanium Plates
These plates are made from pure titanium, with a composition of 99.5% or higher. They offer excellent corrosion resistance, high strength-to-weight ratio, and good formability. Commercially pure titanium plates are commonly used in industries such as aerospace, marine, chemical processing, and medical.
Titanium Alloy Plates
Titanium alloys are created by adding specific alloying elements to pure titanium, enhancing its properties. Common titanium alloy plates include Grade 5 (Ti-6Al-4V), Grade 2 (Ti-6Al-4V), and Grade 12 (Ti-0.3Mo-0.8Ni). These alloys offer improved strength, corrosion resistance, and heat resistance compared to commercially pure titanium.
High-Strength Titanium Plates
These plates are specifically designed for applications that require exceptional strength and durability. They are typically made from high-strength titanium alloys such as Grade 5 and Grade 23. High-strength titanium plates are used in industries such as aerospace, defense, and sports equipment manufacturing.
Titanium Clad Plates
These plates consist of a layer of titanium bonded to another metal or alloy, such as stainless steel or copper. Titanium clad plates combine the benefits of titanium’s corrosion resistance with the mechanical properties of the base metal. They are widely used in industries where corrosion resistance and strength are both important.
Customized Titanium Plates
In addition to standard types, titanium plates can also be custom-made to meet specific requirements. This includes plates with specialized dimensions, thicknesses, or surface finishes to suit unique applications.

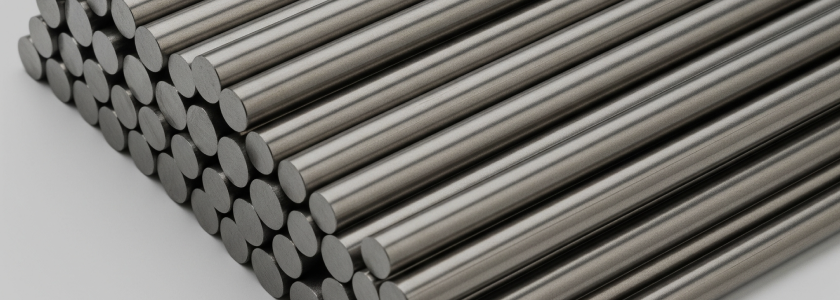

Titanium Round Bars
Specifications
| Bar & Billet Dimensions & Specs | |
|---|---|
| Standards | DIN, EN, ASTM, JIS, ASME, BS, AISI |
| Round Bar Size | Diameter: 3 mm to ~800 mm |
| Flat Bar Size | Thickness: 2 mm to 100 mm, Width: 10 mm to 500 mm |
| Angle Bar Size | 3 × 20 × 20 mm to 12 × 100 × 100 mm |
| Channel Bar | 80 × 40 mm to 150 × 75 mm section; 5.0 to 6.0 mm thickness |
| Rectangular Bars Section | 3.0 mm to 12.0 mm thickness |
| Billet Size | 1/2” to 495 mm Diameter |
| Rectangle Size | 33 × 30 mm to 295 × 1066 mm |
| Hollow Bar | 32 mm OD × 16 mm ID to 250 mm OD × 200 mm ID |
| Dimensions (Diameter/Height) | As required |
| Tolerance | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per client |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, annealed, rough turned, polished, grinding, black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasted, Cold Drawn, Hairline, Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar, Cold Rolled, Rod |
| Processing | Bar cutting up to 650 mm |
| Form | Rod, Round, Channel, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex, Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Finishes Of
Titanium Round Bars
| Abbreviation | Description |
|---|---|
| CD | Cold Drawn |
| P | Polished |
| BD | Bright Drawn |
| SRE | Slit Rolled Edge |
| CG | Centreless Ground |
| HF | Hot Finished |
| CF | Cold Finished |
| HRAP | Hot Rolled Annealed and Pickled |
| P&T | Peeled and Turned |
| RT | Rough Turned / Peeled |
| ST | Smooth Turned |
| PR | Peeled and Reeled |

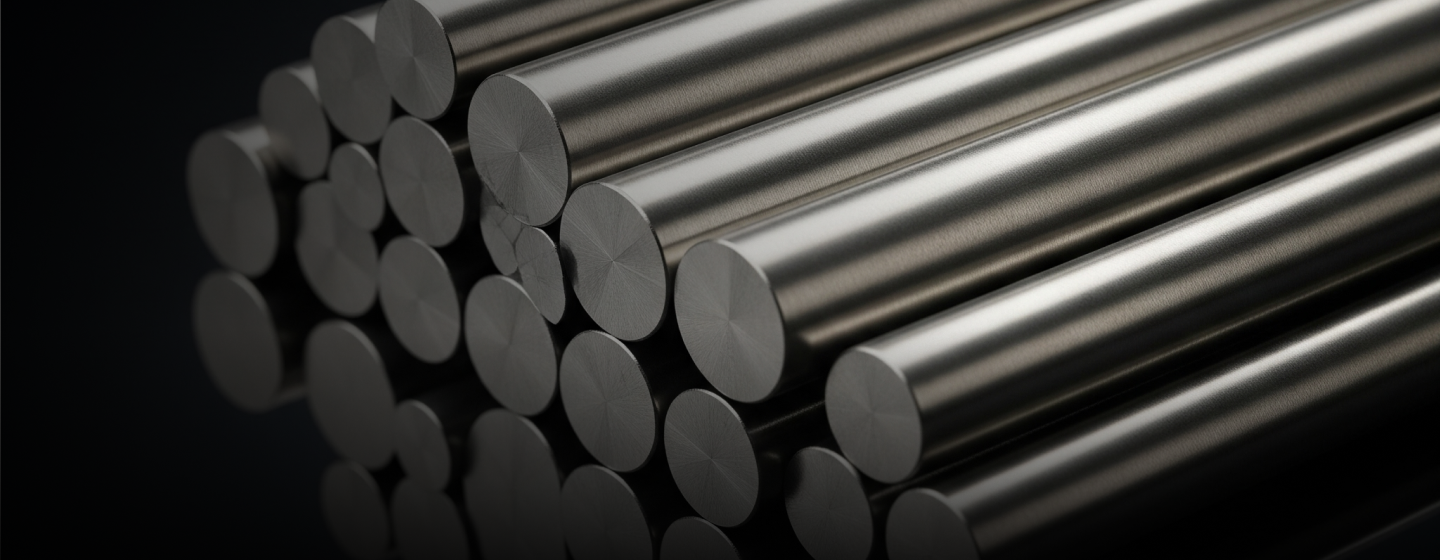

Titanium Round Bars
Weight
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Forms & Shapes of
Titanium Rods
| Titanium Bar & Forging Forms | |||
|---|---|---|---|
| Hollow | Rod | Round Rod | Precision Ground Bars |
| Rings | Flat Bars | Channel Bars | T-Bars |
| Round | Square | Blocks | Rectangle |
| Threaded | Billet | Half Round Bars | I/H Bars |
| Triangle | Forging | Hex (A/F) | Profiles |
| Rectangular Bar | Ingot | ||
Titanium Square Bars
Hardness
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRC |
| Min | Min | Min | Min | Min |
| 827 | 1034 | 17 | 25 | 40 |
Pure Titanium Round Bars
Equivalent Grade
| Grades | UNS | Grades | UNS |
|---|---|---|---|
| CP Grade 1 | R50350 | CP Grade 2 | R50400 |
| CP Grade 3 | R50550 | CP Grade 4 | R50700 |
| Titanium Grade 6 | R54520 | CP Grade 7 | R52400 |
| Titanium Grade 9 | R56320 | CP Grade 11 | R52252 |
| CP Grade 12 | R53400 | CP Grade 16 | R52402 |
| CP Grade 17 | R52252 | CP Grade 26 | R52404 |
| CP Grade 27 | R52404 | Titanium Grade 28 | R56323 |
| Titanium Grade 29 | R56404 | Ti-10V-2Fe-3Al | R56410 |
| Ti-13V-11Cr-3Al3-8-6-44 | R58010 | Ti-2.5Cu | – |
| Ti-3Al-8V-6Cr-4Mo-4Zr | – | Ti-4Al-4Mo-2Sn | – |
| Ti-5-2.5Sn ELI | R54521 | Ti-5.8Al-4.0Sn-3.5Zr-0.7Nb-0.5Mo-0.35Si-0.06C | – |
| Ti-5Al-1Sn-1Zr-1V-0.8Mo | – | Ti-5Al-2Zr-2Sn-4Mo-4Cr | R58650 |
| Ti-6Al-2Sn-2Zr-2Mo-2Cr-0.15Si | R56222 | Ti-6Al-2Sn-4Zr-2Mo | R54620 |
| Ti-6Al-2Sn-4Zr-6Mo | R56260 | Ti-6Al-4V | R56400 |
| Ti-6Al-4V ELI | R56407 | Ti-6Al-6V-2Sn | R56620 |
| Ti-6Al-7Nb | R56700 | Ti-7Al-4Mo | R56740 |
| Ti-8Al-1Mo-1V | R54810 | TIMETAL 21S | – |
