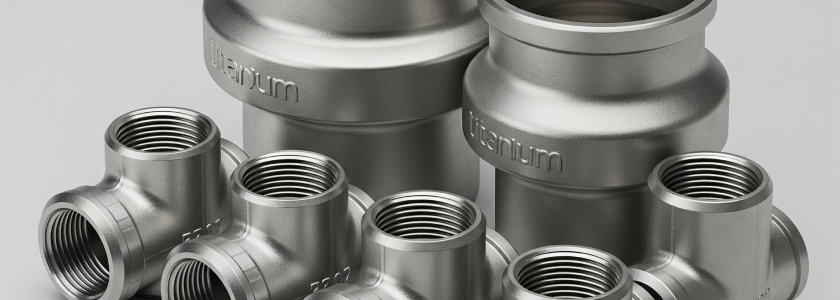

Titanium Pipes and Pipe Fittings from Om Steel are the perfect choice for industries that require reliable and high-performance piping solutions. As a trusted provider of top-quality metal products, we offer a comprehensive range of titanium pipes and pipe fittings designed to meet the diverse needs of various applications.
Our titanium pipes and pipe fittings are meticulously crafted using premium-grade titanium and advanced manufacturing techniques to ensure exceptional strength, corrosion resistance, and longevity. Titanium is renowned for its excellent corrosion resistance, making it ideal for applications where resistance to aggressive chemicals and environments is essential.
Om Steel provides titanium pipes and pipe fittings in various grades, sizes, and configurations to suit different requirements. Whether you need seamless or welded pipes, elbows, tees, reducers, or flanges, our wide selection ensures that you find the perfect solution for your specific project.
With their lightweight properties and exceptional corrosion resistance, titanium pipes and pipe fittings offer reliable and long-lasting performance in challenging environments, including chemical processing, oil and gas, marine, and aerospace industries. They can withstand high temperatures and pressure, making them suitable for critical applications.
At Om Steel, we prioritize quality and customer satisfaction. Our titanium pipes and pipe fittings undergo stringent quality control measures to ensure they meet or exceed industry standards. Our experienced team is ready to assist you in selecting the right grade and size of titanium pipes and fittings to meet your specific needs.
Grades of Titanium Pipes and Their Uses
Grade 2 Titanium Pipes
Grade 2 titanium pipes are one of the most commonly used types of titanium pipes in industrial applications. They have a good ductility and weldability, making them ideal for applications where forming and welding are required. Grade 2 titanium pipes are also known for their excellent corrosion resistance, making them suitable for use in chemical processing plants.
In addition to their corrosion resistance properties, Grade 2 titanium pipes also have a high strength-to-weight ratio. This means that they can withstand high-stress environments without adding extra weight to the structure. As a result, they are often used in aerospace applications where weight is critical.
Another advantage of Grade 2 titanium pipes is their biocompatibility. This makes them an ideal material for medical implants such as pacemakers and dental implants. The biocompatibility of Grade 2 titanium pipes ensures that they do not cause any adverse reactions when implanted into the human body.
Grade 5 Titanium Pipes
Grade 5 titanium pipes are preferred for high-stress applications due to their high strength and toughness. They are commonly used in aerospace applications such as aircraft frames, landing gear components, and engine parts.
One of the key advantages of Grade 5 titanium pipes is their ability to withstand extreme temperatures. They can operate at temperatures up to 600°C (1112°F) without losing their mechanical properties. This makes them ideal for use in gas turbine engines where high-temperature performance is critical.
In addition to their high strength and temperature resistance, Grade 5 titanium pipes also have excellent corrosion resistance properties. This makes them suitable for use in marine environments where saltwater corrosion can be a significant problem.
Other Types of Titanium Pipes
While Grade 2 and Grade 5 titanium pipes are the most commonly used types of titanium pipes, there are other types available that offer specific properties suited to particular industrial applications.
Grade 7 titanium pipes, for example, are known for their superior corrosion resistance in reducing environments such as sulfuric acid. They are commonly used in chemical processing plants where exposure to corrosive chemicals is a significant concern.
Grade 9 titanium pipes, on the other hand, offer excellent corrosion resistance properties and high strength. They are often used in marine applications such as shipbuilding due to their ability to withstand saltwater corrosion.

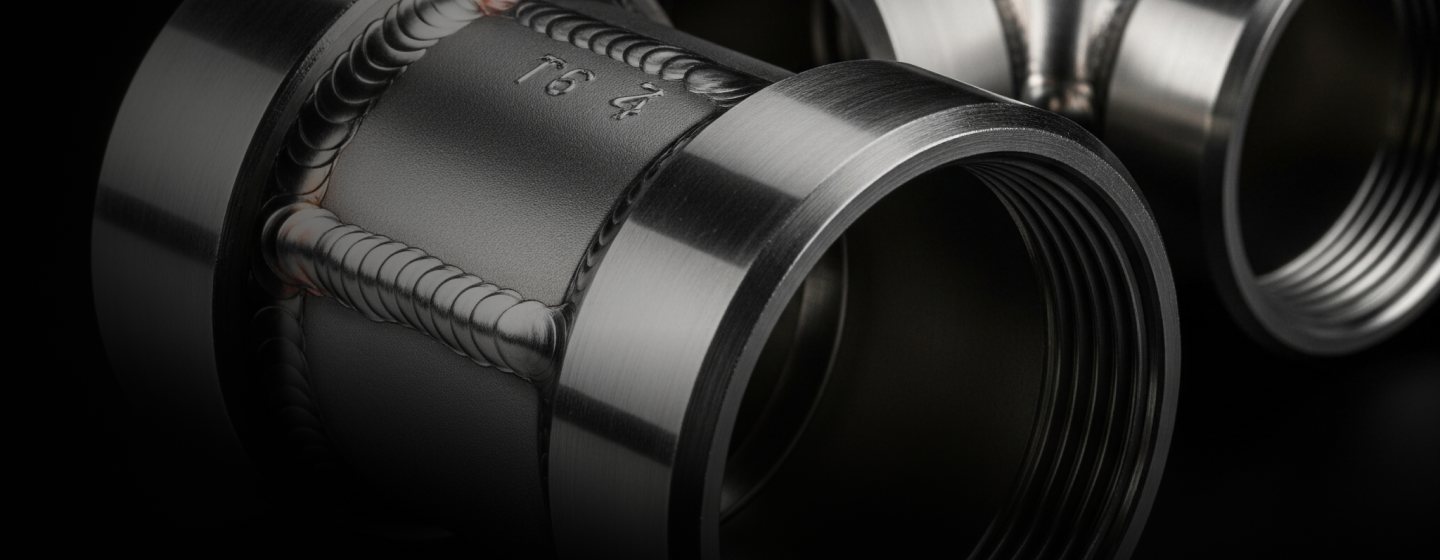

Welded Titanium Pipe
Low-Pressure Welded Titanium Pipes
Welded titanium pipes are a popular choice for fluid transportation due to their durability and resistance to corrosion. Low-pressure welded titanium pipes are ideal for applications such as automotive exhaust systems and heat exchangers. These pipes offer excellent performance in environments that require high strength, low weight, and good corrosion resistance.
One of the benefits of using low-pressure welded titanium pipes is their cost-effectiveness compared to seamless pipes. They offer significant cost savings without compromising on quality. This makes them an attractive option for industries looking to reduce costs while maintaining high-quality standards.
The production of low-pressure welded titanium tubes involves welding together two pieces of titanium tubing or pipe fittings. Good welding is crucial in ensuring the integrity and strength of the weld. The process requires skilled technicians with experience in welding titanium.
Pressurized Welded Titanium Pipes
In contrast to low-pressure welded titanium pipes, pressurized welded titanium pipes are used in industries that require high-pressure fluid transportation, such as oil and gas. These pipes can withstand extreme pressures while maintaining their structural integrity, making them suitable for use in harsh environments.
The production process of pressurized welded titanium pipe is similar to that of low-pressure welded titanium pipes. However, because they are designed to withstand high pressure, extra care must be taken during the welding process to ensure that the welds are strong enough to resist deformation under pressure.
One advantage of using pressurized welded titanium pipes is their ability to handle a wide range of fluids at varying temperatures and pressures. This makes them an ideal choice for industries where flexibility is key.
Types of Titanium Pipe Fittings
Elbow Fittings
Elbow fittings are used to change the direction of the pipe. They come in two types, 45-degree and 90-degree elbows. The angle of the elbow is essential for determining the flow and pressure of fluids in the piping system. Titanium elbow fittings are highly resistant to corrosion, making them ideal for use in harsh environments.
Tee Fittings
Tee fittings are used to connect three pipes together at a T-junction. These fittings come in various sizes and shapes, including equal tee, reducing tee, and barred tee. The type of tee fitting used depends on the specific requirements of the piping system. Custom manufacturers can create bespoke titanium tee fittings based on unique specifications.
Reducer Fittings
Reducer fittings are used to connect pipes with different diameters. They come in two types, concentric reducers, which have a symmetrical shape, and eccentric reducers, which have an asymmetrical shape. Reducer fittings help maintain a uniform flow rate throughout the piping system while reducing turbulence caused by sudden changes in pipe diameter.
Coupling Fittings
Coupling fittings are used to join two pipes together end-to-end without any change in direction or diameter. These fittings come with threaded or non-threaded ends depending on their application requirements. Titanium coupling fittings offer excellent resistance to high temperatures and corrosive environments.
Flange Fittings
Flange fittings are used to join two pipes together using bolts and gaskets that create a leak-proof seal between them. Flanges come in various shapes and sizes such as slip-on flanges, weld-neck flanges, blind flanges, lap joint flanges etc., each designed for specific applications such as high-pressure systems or corrosive environments.
Titanium Pipes and Pipe Fittings
Specification
| Titanium Pipe / Tube Specifications | |
|---|---|
| Standard | ASTM B 337, ASME SB 337 / ASTM B 338, ASME SB 338 |
| Dimension | ASTM, ASME, and API |
| Size | ½” NB to 24” NB in Sch 10s, 40s, 80s, 160s, XXS |
| Tube Size | 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk |
| Outer Diameter | 1.5 mm – 350 mm |
| Thickness | 0.3 – 9 mm |
| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Double Random, Single Random, Cut Length |
| Types | Seamless / ERW / Welded / Fabricated |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| End | Plain End, Beveled End, Threaded |
Titanium Pipes
Information
| Titanium Pipe Types | Out Diameter | Wall Thickness | Length |
|---|---|---|---|
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Up to 6 Meters |
| Seamless Pipe (Custom Sizes) | 5.0 mm ~ 203.2 mm | As per requirement | Up to 6 Meters |
| Welded Pipe (in Stock + Custom Sizes) | 5.0 mm ~ 1219.2 mm | 1.0 ~ 15.0 mm | Up to 6 Meters |
| Titanium Pipe Types | Out Diameter | Sizes | Length |
|---|---|---|---|
| NB Sizes (in stock) | .0035” ~ 8” | 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1.25″, 1.5″, 2″, 2.5″, 3″, 4″, 5″, 6″ | Cut to length |
| Seamless Tube (Custom Sizes) | 6.35 mm OD To 101.6 mm OD | As per requirement | Cut to length |
| Welded Tube (ERW Tube) (in Stock + Custom Sizes) | 6.35 mm OD To 152 mm OD | As per requirement | Cut to length |
Types of
Titanium Pipes
| Titanium Pipe and Tube Types |
|---|
| Titanium Seamless Pipe |
| Ti. Alloy Seamless Tubes |
| Alloy Titanium Seamless Pipe |
| Alloy Seamless Tubing |
| ASTM B337 Titanium Seamless Pipes |
| ASME SB338 Titanium Seamless Tube |
| Titanium Welded Pipe |
| Titanium Alloy Welded Tubing |
| Titanium Alloy Welded Pipes & Tubes |
| Titanium ERW Pipe |
| Titanium Alloy ERW Pipe |
| ASTM B338 Titanium Welded Pipes & Tubes |
| Titanium Alloy Round Pipe & Tube |
| ASTM B337 Titanium Round Pipes |
| ASME SB338 Titanium Round Tubes |
| Titanium Round Tubing |
| Alloy Titanium Custom Pipe |
| ASME SB337 Alloy Custom Pipes |
Titanium Weld Pipe
Fittings Specification
| ASME SB363 Titanium Fittings Specifications | |
|---|---|
| Standard | ASTM B366 |
| Types | • UNS R50250 Titanium Welded Fittings • Titanium Buttweld DIN 3.7035 Fabricated Pipe Fittings • Titanium Gr. 2 Bevel Ends Pipe Fittings • Titanium Gr. 2 Buttweld Fitting • ASTM B363 Titanium Seamless Fittings • ASME SB363 Titanium ERW Fittings |
| Titanium Gr. 1 Fittings Type | DN15–DN1200 |
| Connection Type | Welding |
| Pipe Fittings Size | Titanium UNS R50400 Seamless Butt Weld Fittings: 1/2″ – 10″ Titanium Gr. 2 Welded Butt Weld Fittings: 1/2″ – 48″ |
| Elbow Angles | 22.5°, 30°, 45°, 90°, 180°, 1.0D – 40D |
| Standards | ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605, JISB2311, JISB2312, JISB2313, BS, GB, ISO |
| Manufacturing Process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Titanium Pipe Fittings
Dimensions & Weight
| Grade | Specification (mm) | Standard |
|---|---|---|
| Gr2 (Pure Titanium) | M (3–64) × L (5–300) or as your request | GB, DIN, ASTM, ASME, ISO, JIS |
| Gr5 (Ti6Al4V) | M (3–64) × L (5–300) or as your request | GB, DIN, ASTM, ASME, ISO, JIS |
| M (3–64) or as your request | GB, DIN, ASTM, ASME, ISO, JIS | |
| M (3–64) or as your request | GB, DIN, ASTM, ASME, ISO, JIS | |
Titanium Pipe and Pipe Fittings
Mechanical Properties
| Density | Melting Point | Yield Strength (0.2% Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
