Aluminium Alloy Pipes and Pipe Fittings

Om Steel is a trusted manufacturer and supplier of high-quality Aluminium Alloy Pipes designed to meet the diverse needs of various industries. Our aluminium alloy pipes are known for their durability, strength, and corrosion resistance, making them an ideal choice for various applications.

We offer a wide range of aluminium alloy pipes in different grades, such as 6061, 6063, 6082, and more. These pipes come in various sizes, shapes, and thicknesses to meet different requirements. Our aluminium alloy pipes are also available in different types, including seamless, welded, and ERW pipes.

One of the notable features of our aluminium alloy pipes is their excellent corrosion resistance, which makes them suitable for use in harsh environments. They are also lightweight and have good thermal conductivity, making them ideal for use in various industries, such as aerospace, marine, construction, and more.

At Om Steel, we use the latest technology and high-quality materials to manufacture our aluminium alloy pipes to ensure they meet the highest standards. Contact us today to learn more about our aluminium alloy pipes and how we can meet your specific needs.

Types of Aluminium Alloy Pipes

There are several types of alloys that are used. Each type has its own unique properties and characteristics, making them suitable for different applications.

6061 Aluminium Alloy

One of the most commonly used aluminium alloys in pipes is 6061. This alloy is a precipitation-hardened alloy that contains magnesium and silicon as its major alloying elements. It has excellent corrosion resistance and can be easily welded, making it a popular choice for many applications.

5083 Aluminium Alloy

Another popular aluminium alloy used in pipes is 5083. This alloy contains magnesium, manganese, and chromium as its major alloying elements. It has excellent corrosion resistance and high strength, making it ideal for use in marine applications.

7075 Aluminium Alloy

For applications that require high strength and toughness, the 7075 aluminium alloy is often used in pipes. This alloy contains zinc as its major alloying element and has excellent fatigue strength.

3003 Aluminium Alloy

The 3003 aluminium alloy is another commonly used aluminum alloy in pipes due to its excellent formability and weldability. It contains manganese as its major alloying element and has good corrosion resistance.

2024 Aluminium Alloy

The 2024 aluminium alloy is often used in aerospace applications due to its high strength-to-weight ratio. It contains copper as its major alloying element and has good machinability.

6063 Aluminium Alloy

The 6063 aluminium alloy is commonly used for architectural applications such as window frames because of its good extrudability and corrosion resistance.

Other Alloys

Aside from the above-mentioned alloys, there are other types of aluminum alloys that are also suitable for use in pipes depending on the application. These include the 5052, 6005, and 7005 alloys.

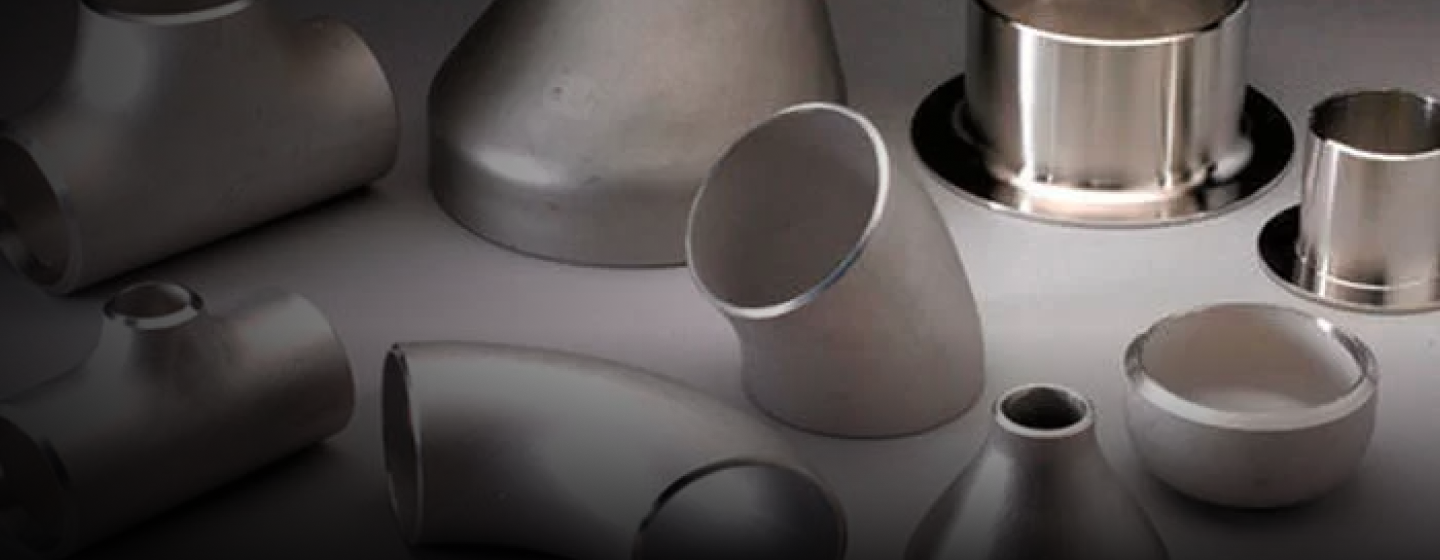

Types of Aluminium Alloy Pipe Fittings

Aluminium alloy pipe fittings are widely used in various industries, including construction, automotive, and aerospace. These fittings are made from a combination of aluminium and other metals to produce a material that is strong, lightweight, and corrosion-resistant.

Elbow Fittings

Elbow fittings are used to connect two pipes at an angle. They come in different angles such as 45 degrees or 90 degrees depending on the needs of the application. The shape of elbow fittings allows for easy fluid flow through the pipes while also providing flexibility in installation.

Tee Fittings

Tee fittings are used to connect three pipes together at right angles. They come in different sizes and shapes depending on the needs of the application. Tee fittings provide a smooth transition between pipes while also allowing for easy maintenance and repair.

Reducer Fittings

Reducer fittings are used to connect two pipes with different diameters. They come in different sizes and shapes depending on the needs of the application. Reducer fittings provide a smooth transition between pipes while also maintaining fluid flow rates.

Coupling Fittings

Coupling fittings are used to join two pipes together end-to-end without any angle or bend. They come in different sizes and shapes depending on the needs of the application. Coupling fittings provide a secure connection between pipes while also allowing for easy disassembly if needed.

Flange Fittings

Flange fittings are used to connect two pipes together by bolting them together with a gasket in between them to prevent leakage or loss of pressure within the system. Flange fittings come in different sizes and shapes depending on the needs of the application.

Products

Aluminium Alloy Pipes and Pipe Fittings

Specification

Specification	ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Dimensions	ASTM, ASME and API
Standard	AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Outside Diameter	1″ through 16″
Size	8 (1-1/2″ / 1.900″)
Type	Seamless / ERW / Welded / Fabricated Pipes
Form	Round, Square, Rectangular, Custom Hollow, Extruded Pipe Etc
Length	Single Random, Double Random & Required Length
Pipe Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tube Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
End	Plain End, Beveled End, Threaded Pipe & Tube

6082 Aluminium Alloy Pipes and Pipe Fittings

Physical Property

Physical Property	Value
Density	2.70 g/cm³
Melting Point	582 °C
Thermal Expansion	23.4 × 10⁻⁶ /K
Modulus of Elasticity	69 GPa
Thermal Conductivity	170 W/m·K
Electrical Resistivity	43% IACS

Aluminium Alloy Pipe

Schedule Chart

Pipe Size	O.D.	Schedule	Pipe Size	O.D.	Schedule
1/8″ IPS	0.405″	SCH 40, 80	3 1/2″ IPS	4.000″	SCH 10, 40, 80, 160, XXH
1/4″ IPS	0.540″	SCH 10, 40, 80	4″ IPS	4.500″	SCH 10, 40, 80, 160, XXH
3/8″ IPS	0.675″	SCH 10, 40, 80	5″ IPS	5.563″	SCH 10, 40, 80, 160, XXH
1/2″ IPS	0.840″	SCH 5, 10, 40, 80, 160, XXH	6″ IPS	6.625″	SCH 5, 10, 40, 80, 120, 160, XXH
3/4″ IPS	1.050″	SCH 10, 40, 80, 160, XXH	8″ IPS	8.625″	SCH 5, 10, 40, 80, 120, 160, XXH
1″ IPS	1.315″	SCH 5, 10, 40, 80, 160, XXH	10″ IPS	10.750″	SCH 10, 20, 40, 80 (.500), TRUE 80 (.500)
1-1/4″ IPS	1.660″	SCH 10, 40, 80, 160, XXH	12″ IPS	12.750″	SCH 10, 20, 40 (.375), TRUE 40 (.406), SCH 80 (.500)
1-1/2″ IPS	1.900″	SCH 10, 40, 80, 160, XXH	14″ IPS	14.000″	SCH 10 (.188), SCH 40 (.375)
2″ IPS	2.375″	SCH 10, 40, 80, 160, XXH	16″ IPS	16.000″	SCH 10 (.188), SCH 40 (.375)
2-1/2″ IPS	2.875″	SCH 10, 40, 80, 160, XXH	18″ IPS	18.000″	SCH 40 (.375)
3″ IPS	3.500″	SCH 5, 10, 40, 80, 160, XXH	–	–	–

Aluminium Alloy Pipe

Size Chart

Size	Outside Diameter (mm)	SCH 10S	SCH 10	SCH 40S	STD Weight	SCH 40	SCH 80S	SCH 80	Metric Size
1/4″	13.72	1.65	–	2.24	2.24	2.24	3.02	3.02	–
3/8″	17.15	1.65	–	2.31	2.31	2.31	3.2	3.2	–
1/2″	21.34	2.11	–	2.77	2.77	2.77	3.73	3.73	15
3/4″	26.67	2.11	–	2.87	2.87	2.87	3.91	3.91	20
1″	33.4	2.77	–	3.38	3.38	3.38	4.55	4.55	25
1 1/4″	42.16	2.77	–	3.56	3.56	3.56	4.85	4.85	32
1 1/2″	48.26	2.77	–	3.68	3.68	3.68	5.08	5.08	40
2″	60.32	2.77	–	3.91	3.91	3.91	5.54	5.54	50
2 1/2″	73.02	3.05	–	5.16	5.16	5.16	7.01	7.01	65
3″	88.9	3.05	–	5.49	5.49	5.49	7.62	7.62	80
3 1/2″	101.6	3.05	–	5.74	5.74	5.74	8.08	8.08	90
4″	114.3	3.05	–	6.02	6.02	6.02	8.56	8.56	100
5″	141.3	3.4	–	6.55	6.55	6.55	9.52	9.52	125
6″	168.27	3.4	–	7.11	7.11	7.11	10.97	10.97	150
8″	219.07	3.76	–	8.18	8.18	8.18	12.7	12.7	200
10″	273.05	4.19	–	9.27	9.27	9.27	12.7	15.08	250
12″	323.85	4.57	–	9.52	9.52	10.31	12.7	17.47	300
14″	355.6	4.77	6.35	–	9.52	11.12	–	19.05	350
16″	404.6	4.77	6.35	–	9.52	12.7	–	21.44	400
18″	457.2	4.77	6.35	–	9.52	14.27	–	23.82	450

Aluminium Alloy Pipes and Pipe Fittings

Chemical Composition

Grade	Si	Fe	Cu	Zn	Mn	Mg	Ti	Cr	Al	Others (Total)
Aluminium	0.40 – 0.80	0.70 max	0.15 – 0.40	0.25 max	0.15	0.8 – 1.2	0.15 max	0.04 – 0.35	Balance	0.15 max
