ASTM A514 (T-1 Steel) AS Plates

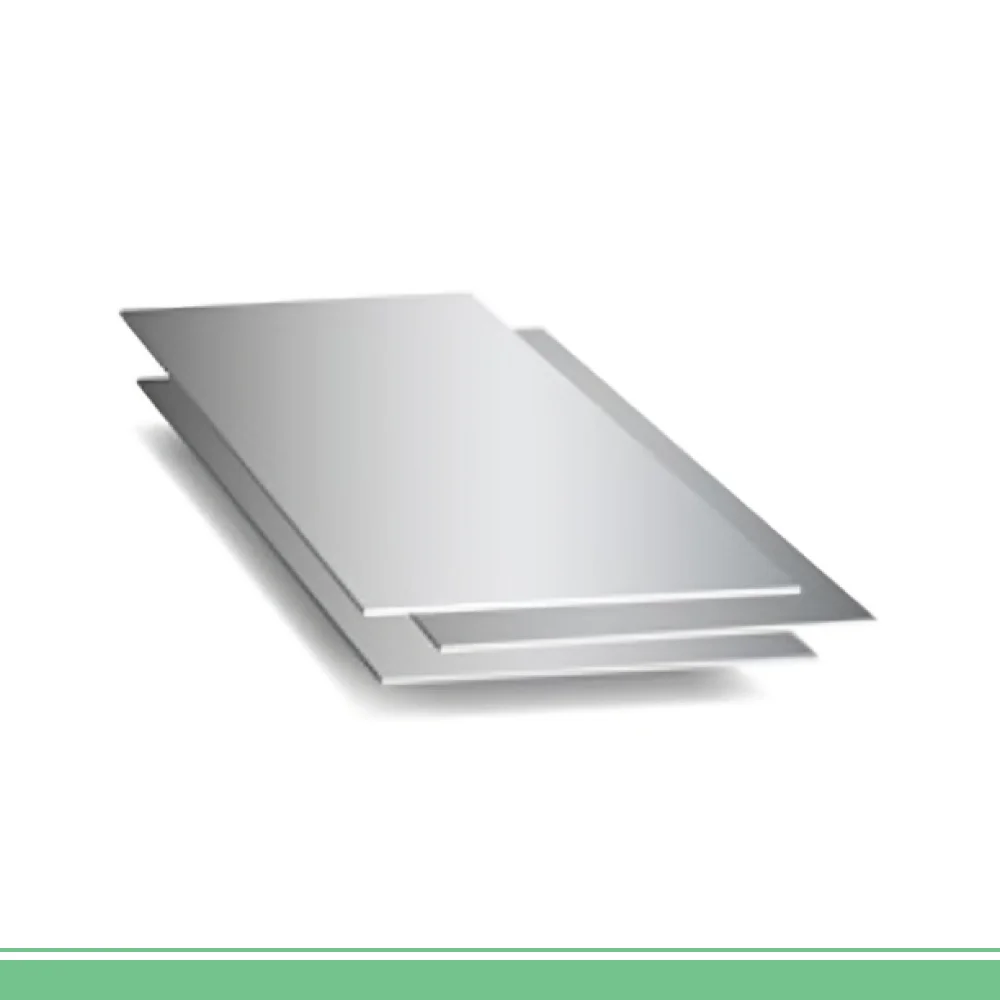

ASTM A572 (Grades 50, 60, 65) AS Plates
ASTM A514 (T-1 Steel) AS Plates, ASTM A572 (Grades 50, 60, 65) AS Plates, EN 10025-6 S690QL, S700MC AS Plates
62 Reviews
Product Description:
Elevate the performance of your structural applications with our high-strength steel plates. Our ASTM A514 (T-1 Steel) AS Plates are known for their high yield strength and superior toughness, making them perfect for heavy-load structural applications like bridges and buildings.
The ASTM A572 AS Plates, available in Grades 50, 60, and 65, offer increased durability and are ideal for high-stress environments. For extreme conditions requiring high tensile strength, choose our EN 10025-6 S690QL or S700MC AS Plates, which provide exceptional load-bearing capabilities and resistance to deformation.
Each grade is crafted to meet rigorous structural demands and is available in various thicknesses to suit your project needs.
High-strength ASTM A514 (T-1 Steel), ASTM A572 Grades 50, 60, 65, and EN 10025-6 S690QL and S700MC alloy steel plates are engineered for applications demanding exceptional strength, toughness, and durability. These plates are widely used in construction, industrial equipment, heavy machinery, and structural applications.
Key Features
ASTM A514 (T-1 Steel) Plates
- Description: Heat-treated, quenched, and tempered steel plates.
- Yield Strength: 690 MPa (100 ksi).
- Applications: Bridges, construction equipment, transport trailers.
- Features: High weldability and machinability.
ASTM A572 Plates (Grades 50, 60, 65)
- Description: High-strength low-alloy (HSLA) steel plates.
- Yield Strength:
- Grade 50: 345 MPa (50 ksi).
- Grade 60: 415 MPa (60 ksi).
- Grade 65: 450 MPa (65 ksi).
- Applications: Construction, crane booms, wind towers, and structural components.
- Features: Excellent strength-to-weight ratio.
EN 10025-6 S690QL Plates
- Description: High-strength quenched and tempered structural steel.
- Yield Strength: 690 MPa.
- Applications: Offshore platforms, cranes, heavy transportation.
- Features: High impact resistance and durability.
EN 10025-6 S700MC Plates
- Description: High-strength thermo-mechanically rolled steel plates.
- Yield Strength: 700 MPa.
- Applications: Automotive, lifting equipment, structural components.
- Features: Superior formability and weldability.
Advantages
- Exceptional Strength: Ideal for heavy-load applications requiring durability and reliability.
- Corrosion Resistance: Enhanced resistance to harsh environments and atmospheric corrosion.
- Excellent Weldability: Suitable for complex fabrication projects.
- Versatility: Available in a variety of thicknesses and sizes to meet custom requirements.
- Impact Resistance: High resistance to shocks and impacts, making these plates suitable for challenging conditions.
Why Choose Us for High-Strength Alloy Steel Plates?
We provide top-quality ASTM A514, ASTM A572, EN 10025-6 S690QL, and S700MC alloy steel plates designed to meet diverse industry needs. Our plates are tested for quality and durability, ensuring superior performance in demanding environments.
Contact us today for customized solutions and competitive pricing for high-strength alloy steel plates!
Applications
ASTM A514 (T-1 Steel)
- Heavy equipment manufacturing.
- Pressure vessels.
- Transportation vehicles.
ASTM A572 (Grades 50, 60, 65)
- Structural steel applications.
- Bridges and wind towers.
- Heavy machinery components.
EN 10025-6 S690QL
- Offshore structures.
- Cranes and lifting equipment.
- Mining and drilling components.
EN 10025-6 S700MC
- Automotive frames.
- Load-bearing structures.
- Industrial machinery.
Specifications
| Grade | Standard | Thickness Range | Applications |
|---|---|---|---|
| ASTM A387 Grade 11 | ASME/ASTM | 6 mm to 150 mm | Heat exchangers, pressure vessels |
| ASTM A387 Grade 12 | ASME/ASTM | 6 mm to 150 mm | Industrial boilers, refinery equipment |
| ASTM A387 Grade 22 | ASME/ASTM | 6 mm to 150 mm | High-pressure equipment, power plants |
| EN 10028-2 P265GH / P295GH | EN/ISO | 6 mm to 100 mm | Boilers, piping systems |
Mechanical
Properties
| Property | Grade 11 | Grade 12 | Grade 22 | P265GH | P295GH |
|---|---|---|---|---|---|
| Tensile Strength (MPa) | 450 – 585 | 450 – 585 | 515 – 690 | 410 – 530 | 460 – 580 |
| Yield Strength (MPa) | 240 | 240 | 310 | 235 | 295 |
| Elongation (%) | 18 – 22 | 18 – 22 | 18 – 22 | 23 – 25 | 22 – 24 |
| Max Operating Temperature | Up to 600°C | Up to 600°C | Up to 650°C | Up to 400°C | Up to 400°C |
