Mild Steel Angle: Standard Sizes, Dimensions & Weight Chart
In this blog, we’ll break down the properties, applications, and advantages of oxygen-free copper, helping you understand why it’s preferred over standard copper in various industries.

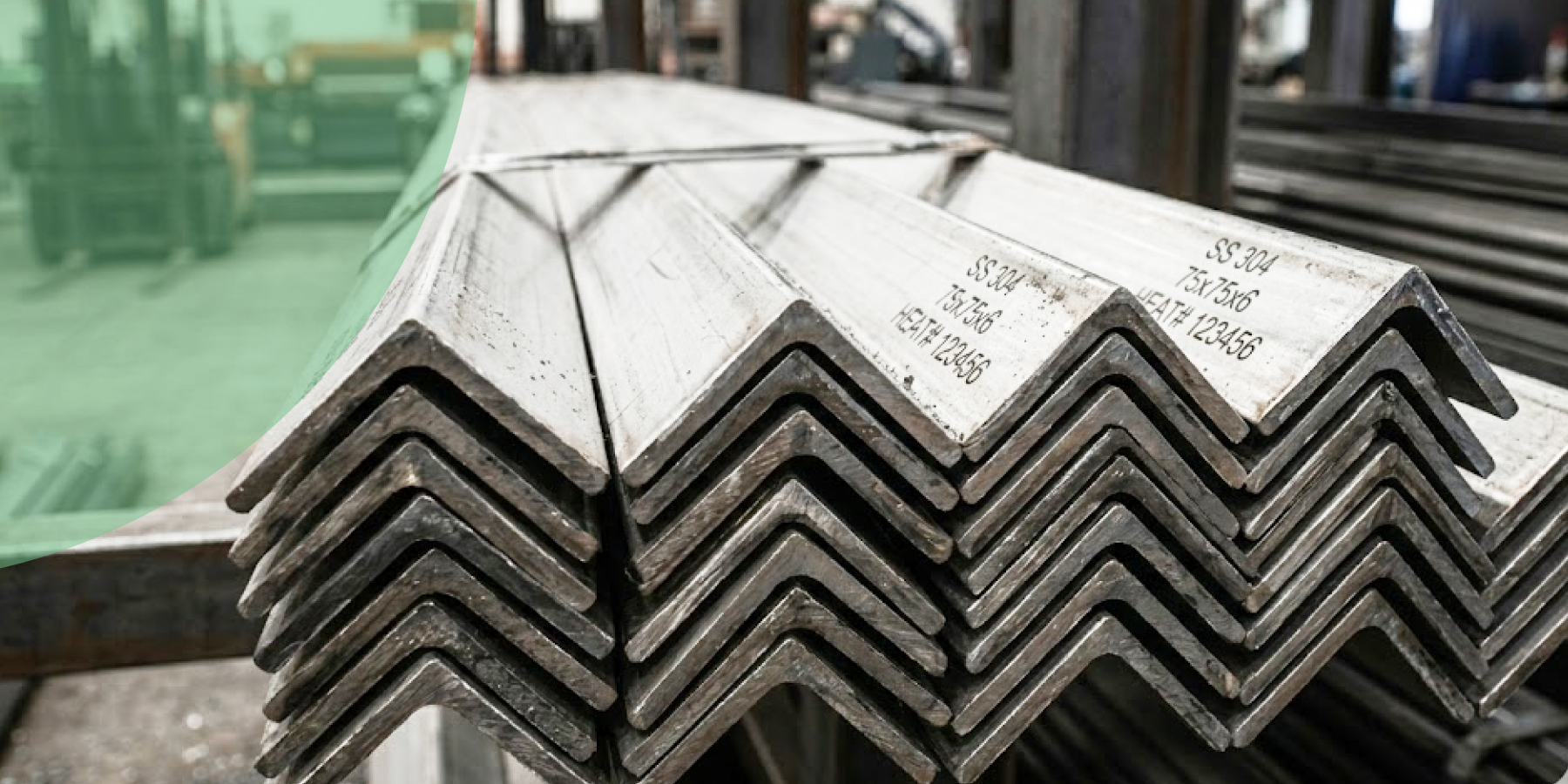

Mild steel angles are L-shaped structural steel sections widely used in construction, fabrication, and manufacturing. Understanding standard sizes, dimensions, and weights is essential for accurate project planning, structural calculations, and material procurement.
What is Mild Steel Angle?
Mild steel angle, also known as angle iron or L-angle, is a long steel bar bent at a right angle along its length. It’s made from low-carbon steel (typically 0.15-0.25% carbon content), offering excellent weldability, formability, and cost-effectiveness. The two legs of the angle can be equal or unequal in length.
Types of Mild Steel Angles
![]()
Equal Angles: Both legs have the same dimensions, providing symmetrical strength and appearance. Common in general construction, framework, and support structures.
Unequal Angles: One leg is longer than the other, useful when different load-bearing requirements exist in perpendicular directions. Ideal for applications requiring asymmetric strength distribution.
Standard Size Specifications
Mild steel angles are specified by:
- Leg lengths: The dimensions of both legs (e.g., 50x50mm or 75x50mm)
- Thickness: The material thickness of the legs
- Length: Standard lengths typically 6m, 9m, or 12m
Common Equal Angle Sizes
Small Sizes (20mm to 50mm):
- 20x20x3mm
- 25x25x3mm
- 25x25x5mm
- 30x30x3mm
- 40x40x5mm
- 50x50x5mm
- 50x50x6mm
Medium Sizes (60mm to 100mm):
- 60x60x6mm
- 65x65x6mm
- 75x75x6mm
- 75x75x8mm
- 80x80x8mm
- 90x90x8mm
- 100x100x8mm
- 100x100x10mm
Large Sizes (125mm to 200mm):
- 125x125x10mm
- 125x125x12mm
- 150x150x12mm
- 150x150x15mm
- 200x200x16mm
- 200x200x20mm
Common Unequal Angle Sizes
- 40x25x3mm
- 50x30x5mm
- 65x50x5mm
- 75x50x6mm
- 100x75x8mm
- 125x75x10mm
- 150x100x10mm
- 200x100x12mm
Weight Calculation Formula
Weight per meter = [(A + B – T) × T × 0.00785] kg/m
Where:
- A = Length of first leg (mm)
- B = Length of second leg (mm)
- T = Thickness (mm)
- 0.00785 = Density factor for mild steel
Sample Weight Chart for Equal Angles
| Size (mm) | Thickness (mm) | Weight (kg/m) | Weight (kg per 6m) |
|---|---|---|---|
| 25×25 | 3 | 1.1 | 6.6 |
| 40×40 | 5 | 3.0 | 18.0 |
| 50×50 | 6 | 4.5 | 27.0 |
| 65×65 | 6 | 5.8 | 34.8 |
| 75×75 | 8 | 9.0 | 54.0 |
| 100×100 | 10 | 15.0 | 90.0 |
| 125×125 | 12 | 22.3 | 133.8 |
| 150×150 | 15 | 33.8 | 202.8 |
Sample Weight Chart for Unequal Angles
| Size (mm) | Thickness (mm) | Weight (kg/m) | Weight (kg per 6m) |
|---|---|---|---|
| 50×30 | 5 | 2.3 | 13.8 |
| 65×50 | 5 | 3.4 | 20.4 |
| 75×50 | 6 | 4.5 | 27.0 |
| 100×75 | 8 | 10.5 | 63.0 |
| 125×75 | 10 | 15.0 | 90.0 |
| 150×100 | 12 | 22.9 | 137.4 |
Manufacturing Standards
Indian Standards (IS):
- IS 808: Dimensions for equal and unequal angles
- IS 2062: Steel grades for structural applications
British Standards (BS):
- BS EN 10056: Structural steel equal and unequal leg angles
American Standards (ASTM):
- ASTM A36: Structural steel specifications
Material Grades
IS 2062 Grade E250: Most commonly used, yield strength 250 MPa. IS 2062 Grade E350: Higher strength, yield strength 350 MPa. IS 2062 Grade E450: High-strength applications, yield strength 450 MPa
Key Dimensional Properties
![]()
- Root Radius: The curved inner corner where legs meet, typically 3-5mm depending on size.
- Toe Radius: The outer edge radius on each leg, usually smaller than the root radius.
- Sectional Area: Cross-sectional area used for strength calculations.
- Moment of Inertia: Resistance to bending, critical for structural design.
- Radius of Gyration: Used in column buckling calculations.
Applications by Size Range
Small Angles (20-50mm):
- Light framework
- Shelving and racking
- Small equipment supports
- Decorative applications
- Furniture construction
Medium Angles (60-100mm):
- Structural framing
- Tower construction
- Building supports
- Machine frames
- Stair stringers
- Roof trusses
Large Angles (125-200mm):
- Heavy structural support
- Bridge construction
- Industrial building frames
- Heavy equipment mounting
- Crane structures
- Large transmission towers
Selection Considerations
- Load Requirements: Calculate expected loads to determine required size and thickness.
- Span Length: Longer spans require larger sections to prevent excessive deflection.
- Connection Methods: Consider bolt hole requirements and welding accessibility.
- Corrosion Environment: Specify galvanized or painted finish for outdoor use.
- Availability: Common sizes are readily available; custom sizes may require longer lead times.
Surface Finishes
![]()
- Black Finish: As-rolled, requiring painting or coating for corrosion protection.
- Galvanized: Hot-dip galvanized coating for outdoor and corrosive environments.
- Painted: Pre-painted or powder-coated for aesthetic and protective purposes.
Procurement Tips
- Order standard lengths to minimize cutting waste
- Confirm grade specifications match design requirements
- Verify dimensional tolerances with manufacturer
- Consider transportation and handling capabilities for longer sections
- Request mill test certificates for structural applications
- Plan for approximately 2-5% cutting and fabrication waste
Storage and Handling
Store angles horizontally on level supports to prevent bending. Keep off the ground to avoid moisture contact and corrosion. For galvanised material, avoid direct contact with dissimilar metals. Handle with appropriate lifting equipment for larger sizes to prevent damage and ensure safety.
Conclusion
Understanding mild steel angle sizes, dimensions, and weights is fundamental for structural design, material estimation, and procurement. This comprehensive guide provides the essential information needed for selecting appropriate angle sections for various applications. Whether you’re designing building frameworks, fabricating equipment supports, or estimating material requirements, accurate knowledge of standard dimensions and weights ensures successful project execution and cost-effective material usage. Always consult relevant design codes and engineering standards for critical structural applications.
FAQ's
Need Help?
We're Here for You!
Feel free to contact us any time. we will get back to you as soon as we can!
Ask Anything
Do you have any questions?
Mild steel angles are available in a wide range of sizes, typically starting from 20×20×3 mm and going up to 200×200×20 mm for equal angles. Unequal angles commonly range from 40×25×3 mm to 200×100×12 mm. Standard lengths are usually 6 meters, 9 meters, and 12 meters, depending on the manufacturer and project requirements.
The weight of a mild steel angle can be calculated using the formula:
Weight (kg/m) = [(A + B − T) × T × 0.00785]
Where:
- A = Length of first leg (mm)
- B = Length of second leg (mm)
- T = Thickness (mm)
- 0.00785 = Density factor of steel
This formula helps estimate material weight for procurement and structural calculations.
Equal angles have both legs of the same size (e.g., 50×50×6 mm), providing balanced strength in both directions. Unequal angles have different leg lengths (e.g., 75×50×6 mm), making them suitable for applications where load distribution is uneven or space constraints exist.
