316 Stainless Steel Plates
316L Stainless Steel Plates
316 SS Plates, 316L SS Plates
62 Reviews
Product Description:
316 SS plates and 316L SS plates are premium materials designed for excellent corrosion resistance, especially in marine and chemically aggressive environments. Known for their durability and high performance, these plates are widely used in industries like chemical processing, marine engineering, and pharmaceuticals.

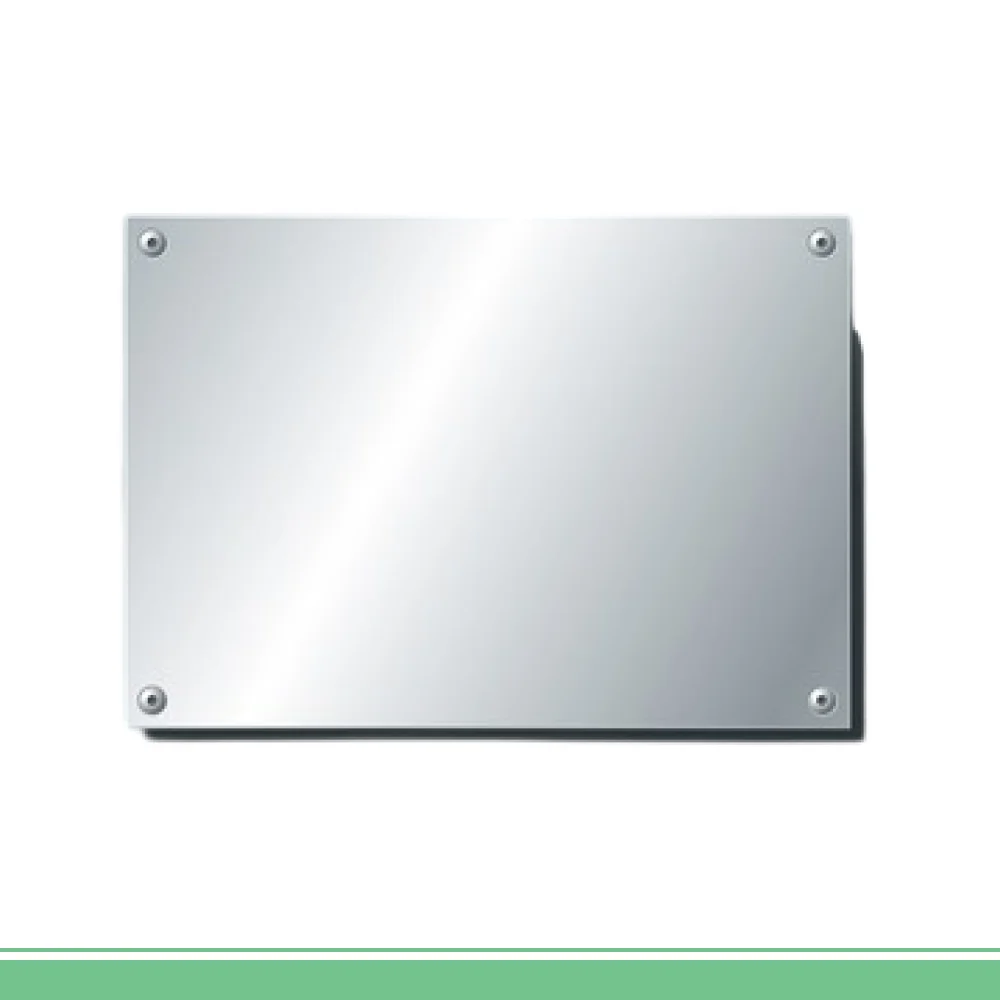

316 Stainless Steel Plates
Grade 316 is a molybdenum-bearing stainless steel, offering enhanced corrosion resistance compared to 304 stainless steel. It is particularly resistant to pitting and crevice corrosion in chloride-rich environments.
Key Features
- High Corrosion Resistance: Excellent in marine and mildly acidic conditions.
- Strength at High Temperatures: Performs well in elevated temperature applications.
- Good Weldability: Easily welded with and without filler metals.
- Versatility: Ideal for both industrial and decorative applications.
Applications
- Marine equipment
- Heat exchangers and condensers
- Pharmaceutical and chemical processing
- Food and beverage industry
- Pulp and paper processing equipment
316L Stainless Steel Plates
Grade 316L is the low-carbon version of 316, designed for improved weldability and resistance to intergranular corrosion. It is the preferred choice for applications involving extensive welding.
Key Features
- Low Carbon Content: Reduces carbide precipitation during welding.
- Excellent Corrosion Resistance: Similar to 316 with added resistance to sensitization.
- High Strength and Durability: Retains performance in challenging environments.
- Ease of Fabrication: Can be easily machined, formed, and welded.
Applications
- Storage and handling of chemicals
- Marine and offshore structures
- Welded piping systems
- Food and pharmaceutical equipment
- Heat exchangers and tanks
Available Finishes
- 2B Finish: Smooth, reflective, and suitable for industrial applications.
- BA Finish: Bright annealed for decorative and high-clarity uses.
- No. 4 Finish: Brushed finish ideal for aesthetic and architectural purposes.
- Mirror Finish: Highly polished for premium decorative applications.
Common Plate Sizes
- Thickness: 3mm to 100mm
- Width: 1000mm, 1219mm, 1500mm
- Length: 2000mm, 2438mm, 3000mm, or custom sizes available.
Value-Added Services
- Custom Cutting: Plates can be tailored to specific dimensions.
- Surface Treatment: Polishing, coating, and custom finishes available.
- Packaging: Export-grade packaging for secure transportation.
Contact Us for Premium Stainless Steel Plates
For high-quality 316 and 316L stainless steel plates, get in touch with us today. We provide expert guidance, competitive pricing, and customized solutions to meet your industrial and commercial needs.
Chemical
Composition
| Element | 316 (%) | 316L (%) |
|---|---|---|
| Carbon (C) | 0.08 (maximum) | 0.03 (maximum) |
| Chromium (Cr) | 16.0–18.0 | 16.0–18.0 |
| Nickel (Ni) | 10.0–14.0 | 10.0–14.0 |
| Molybdenum (Mo) | 2.0–3.0 | 2.0–3.0 |
| Manganese (Mn) | 2.0 (maximum) | 2.0 (maximum) |
| Silicon (Si) | 1.0 (maximum) | 1.0 (maximum) |
| Phosphorus (P) | 0.045 (maximum) | 0.045 (maximum) |
| Sulfur (S) | 0.03 (maximum) | 0.03 (maximum) |
Mechanical
Properties
| Property | 316 | 316L |
|---|---|---|
| Tensile Strength (MPa) | 515–720 | 485–700 |
| Yield Strength (MPa) | 205 | 170 |
| Elongation (%) | 40 | 40 |
| Hardness (HRB) | 95 (maximum) | 92 (maximum) |
