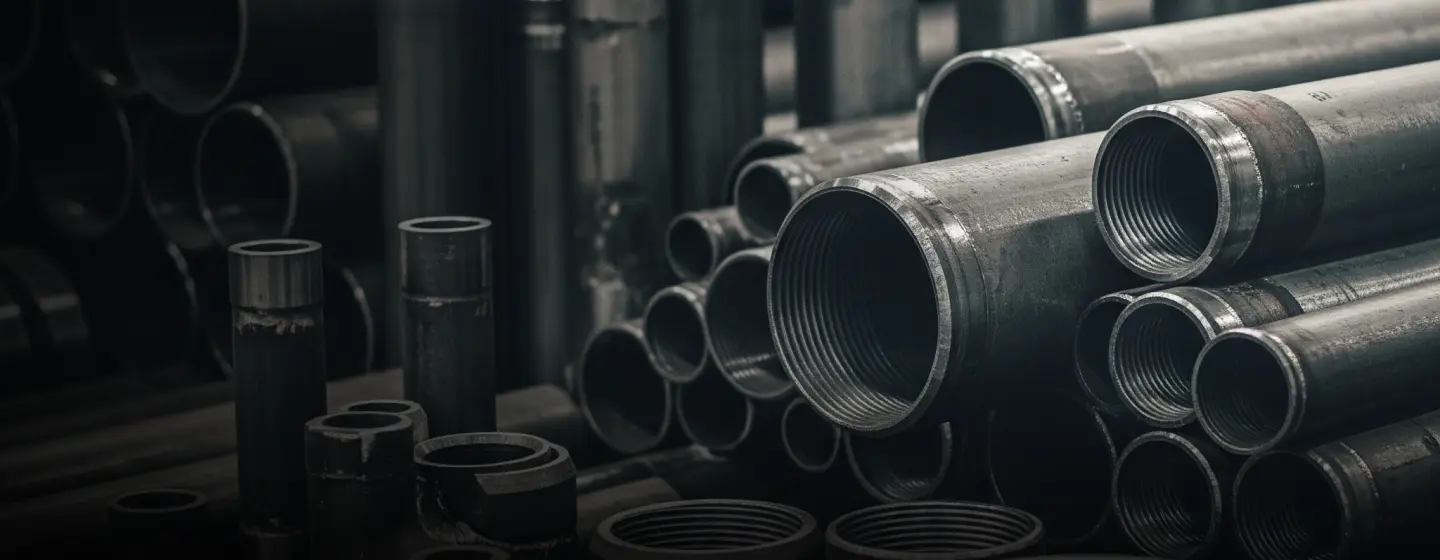

Carbon steel pipes and pipe fittings are a critical component used in various industries, including oil and gas, construction, and manufacturing. Om Steel offers a range of high-quality carbon steel pipes designed to meet the diverse needs of different applications.
Our carbon steel pipes and pipe fittings are available in different types, including seamless and welded pipes. We offer a range of sizes and grades to ensure that you get the product that is right for your needs. Our pipes are made using the latest technology and manufacturing techniques, ensuring that they meet the highest quality standards.
One of the key features of our carbon steel pipes and pipe fittings is their strength and durability. Our pipes are highly resistant to corrosion and wear and tear, making them ideal for use in harsh environments. They are also easy to work with and can be cut, welded, and formed to meet your specific needs.
At Om Steel, we pride ourselves on providing excellent customer service and support. Our team of experts is always available to answer any questions you may have and to provide you with the necessary guidance and support to ensure that you get the best possible product.

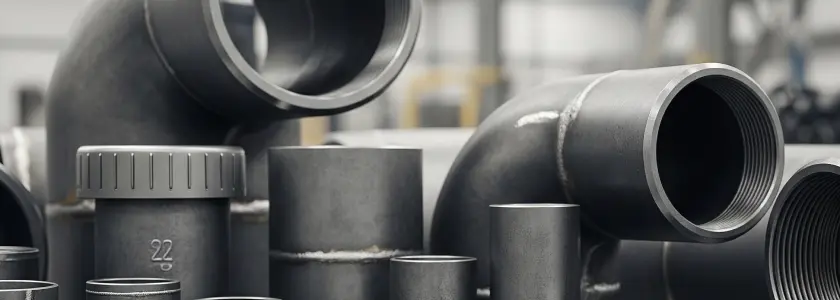

Types of Carbon Steel Pipe Fittings
Carbon steel pipe fittings and flanges are essential components in any piping system. They connect pipes, change the direction of flow, and regulate fluid pressure. Carbon steel is a popular material for these components because it is strong, durable, and resistant to corrosion. In this section, we will discuss the different types of carbon/mild steel pipe fittings and flanges.
Butt Weld Fittings
Butt weld fittings are welded directly onto the ends of pipes to create a permanent connection. They are available in various shapes such as elbows, tees, reducers, caps, etc. Butt weld fittings have a smooth inner surface that minimizes frictional resistance and turbulence.
Socket Weld Fittings
Socket weld fittings are similar to butt weld fittings but have a socket at one end that fits over the pipe end. The other end is welded directly to the pipe. Socket weld fittings are commonly used for small-diameter pipes or high-pressure applications.
Threaded Fittings
Threaded fittings have threads on both ends that allow them to be screwed onto pipes without welding. They come in various shapes such as elbows, tees, couplings, unions, etc. Threaded fittings are easy to install and disassemble but may not be suitable for high-pressure applications.
Flanges
Flanges are flat discs with bolt holes around their circumference that connect two pipes together or attach valves or other equipment to pipes. There are several types of flanges including slip-on flanges, weld neck flanges, blind flanges, lap joint flanges and threaded flanges.
Slip-On Flange
Slip-on flange has a low hub because the pipe slips into it before welding which makes it easier to align than other types of flange when installing.
Weld Neck Flange
The Weld neck flange has a long tapered hub which provides an important reinforcement for use in several applications involving high pressure, sub-zero and/or elevated temperatures.
Blind Flange
The blind flange is used to close the end of a pipe. It is sometimes referred to as a blanking flange.
Lap Joint Flange
A lap joint flange is similar to slip-on flanges but with a radius at the intersection of the bore and the flange face to accommodate a lap stub end.
Threaded Flange
Threaded flanges are used in low-pressure applications where welding is not possible or necessary. They can also be used for small-bore piping systems.
Carbon Steel Pipes and Pipe Fittings
Specifications
| Dimensions | ASME, ASTM, and API |
|---|---|
| Type | Welded / ERW / Seamless / Fabricated |
| Form | Hydraulic, Round, Etc |
| Size | 1/2 NB to 36 NB |
| Length | Minimum 3 to Maximum 18 Meters |
| Thickness | 3–12 mm |
| End | Beveled End, Plain End, Treaded |
| Schedules | Schedule 40, 80, 160, XS, XXS |
Carbon Steel Pipe Fittings
Specification
| Dimensions Schedule Carbon Steel Fittings | ASME/ ANSI B16.9, MSS-SP-43, ASME B16.28, BS1560, BS4504, BS4504, BS10 |
| Carbon Steel Buttweld fittings Thickness | SCH10, SCH20, SCH 120, SCH 140, XS, SCHEDULE 80, SCH 100, SCH30, STD SCH40, SCH60, SCH 160, XXS available with Standard NACE MR 01-75 |
| Specifications | ASTM A234/ ASME SA234 |
| Carbon Steel Fittings size | Seamless Butt Weld Fittings: 1/2” – 10” Welded Butt Weld Fittings: 1/2” – 48” |
| Carbon Steel Fittings Types | Seamless / Welded / ERW / Fabricated Fittings |
| Bending Radius | R= 1D, 5D, 6D, 3D, 2D, 8D, 10D or Custom fittings |
| Size Range | ½” NB to 24” NB in Sch 10s, Schedule 40s, 160s, 80s, XXS. (DN6-DN100) |
| FittingsType | DN15-DN1200 |
| Carbon Steel Elbow | Angle : 22.5 deg, 30 deg, 45 deg, 180 deg, 90 degree, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.28, ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2312, GB, ISO |
| Speciality in | 90° Elbow, 45 degree Elbow, Crosses, Tees, Reducers, Pipe Cap, Stub End, Pipe Bend |
| Application | – Fittings To Connect Pipe & Tubes in Petroleum, Metallurgy, Power, Construction, Gas, Chemical, Shipbuilding etc – Schedule 40 fittings have a thicker wall for higher-pressure applications. – Schedule 10 fittings are an economical alternative for lower-pressure applications. |
Carbon Steel Seamless Pipes
Specification
| Standard | ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2 |
| Standard | ASTM, ASME and API |
| Size | 15 NB UP TO Carbon Steel NB IN SCH 5S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Length | Single Random, Double Random & Required Length, Cut Length |
| End | Plain End, Beveled End, Treaded |
Carbon Steel
Welded Pipes and Pipe Fittings
| Types | Wall thickness | Out diameter | Length |
|---|---|---|---|
| NB Sizes (in stock) | Schedule 5 / 10 / 40 / 80 / 160 | 1/8″ – 8″ | 6m |
| Carbon Steel Welded Pipes Suppliers(in Stock + Custom Sizes) | 1.0 ~ 15.0 mm | 5.0mm – 1219.2mm | 6m |
| API 5L Carbon Steel Seamless Pipes Suppliers(Custom Sizes) | As per requirement | 5.0mm – 203.2mm | 6m |
Carbon Steel Pipes
sizes
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| – | 1/8 | 10.29 | – | – | 1.2 | – | – | 1.73 | – | – | 2.41 | – | – | – | – | – |
| – | 1/4 | 13.72 | – | – | 1.7 | – | – | 2.24 | – | – | 3.02 | – | – | – | – | – |
| – | 3/8 | 17.15 | – | – | 1.7 | – | – | 2.31 | – | – | 3.2 | – | – | – | – | – |
| 15 | 1/2 | 21.34 | 2.8 | 1.7 | 2.1 | – | – | 2.77 | – | 3.73 | 3.73 | – | – | – | 4.78 | 7.47 |
| 20 | 3/4 | 26.67 | 2.9 | 1.7 | 2.1 | – | – | 2.87 | – | 3.91 | 3.91 | – | – | – | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 3.4 | 1.7 | 2.8 | – | – | 3.38 | – | 4.55 | 4.55 | – | – | – | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.16 | 3.6 | 1.7 | 2.8 | – | – | 3.56 | – | 4.85 | 4.85 | – | – | – | 6.35 | 9.7 |
| 40 | 1 1/2 | 48.26 | 3.7 | 1.7 | 2.8 | – | – | 3.68 | – | 5.08 | 5.08 | – | – | – | 7.14 | 10.2 |
| 50 | 2 | 60.33 | 3.9 | 1.7 | 2.8 | – | – | 3.91 | – | 5.54 | 5.54 | – | – | – | 9.74 | 11.1 |
| 65 | 2 1/2 | 73.03 | 5.2 | 2.1 | 3.1 | – | – | 5.16 | – | 7.01 | 7.01 | – | – | – | 9.53 | 14 |
| 80 | 3 | 88.9 | 5.5 | 2.1 | 3.1 | – | – | 5.49 | – | 7.62 | 7.62 | – | – | – | 11.1 | 15.2 |
| 90 | 3 1/2 | 101.6 | 5.7 | 2.1 | 3.1 | – | – | 5.74 | – | 8.08 | 8.08 | – | – | – | – | – |
| 100 | 4 | 114.3 | 6 | 2.1 | 3.1 | – | – | 6.02 | – | 8.56 | 8.56 | – | 11.1 | – | 13.5 | 17.1 |
| 125 | 5 | 141.3 | 6.6 | 2.8 | 3.4 | – | – | 6.55 | – | 9.53 | 9.53 | – | 12.7 | – | 15.9 | 19.1 |
| 150 | 6 | 168.3 | 7.1 | 2.8 | 3.4 | – | – | 7.11 | – | 10.97 | 11 | – | 14.3 | – | 18.3 | 22 |
| 200 | 8 | 219.1 | 8.2 | 2.8 | 3.8 | – | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 |
| 250 | 10 | 273.1 | 9.3 | 3.4 | 4.2 | – | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 |
| 300 | 12 | 323.9 | 9.5 | 4 | 4.6 | – | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 |
| 350 | 14 | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | – |
| 400 | 16 | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | – |
| 450 | 18 | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | – |
| 500 | 20 | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | – |
| 550 | 22 | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | – | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | – |
| 600 | 24 | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | – |
| 650 | 26 | 660.4 | 9.5 | – | – | 7.9 | 13 | – | – | 12.7 | – | – | – | – | – | – |
| 700 | 28 | 711.2 | 9.5 | – | – | 7.9 | 13 | – | – | 12.7 | – | – | – | – | – | – |
| 750 | 30 | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | – | – | 12.7 | – | – | – | – | – | – |
| 800 | 32 | 812.8 | 9.5 | – | – | 7.9 | 13 | 17.5 | – | 12.7 | – | – | – | – | – | – |
| 850 | 34 | 863.6 | 9.5 | – | – | 7.9 | 13 | 17.5 | – | 12.7 | – | – | – | – | – | – |
Carbon Steel Fittings weights
Product range and theoretical weights(kg)
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
