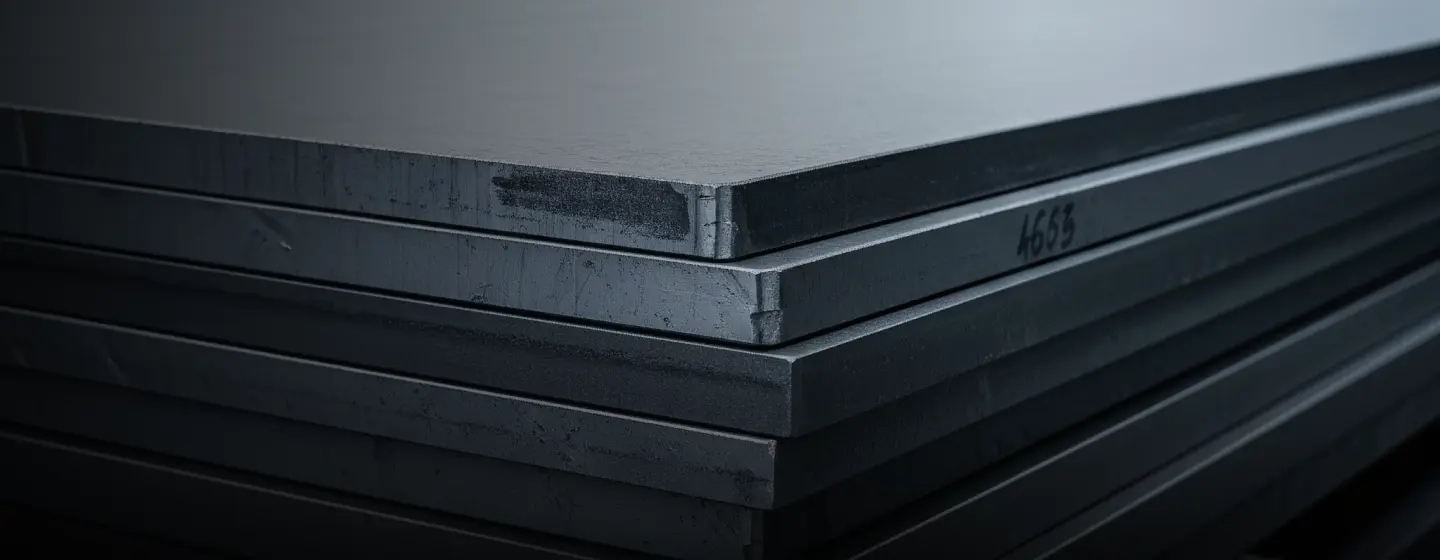

Carbon steel plates are an essential component used in various industries, including construction, transportation, and manufacturing. At Om Steel, we offer a range of high-quality carbon steel plates that are designed to meet the diverse needs of different applications.
Our carbon steel plates come in different types, including hot-rolled, cold-rolled, and galvanized plates. We offer a range of sizes and grades to ensure that you get the product that is right for your needs. Our plates are made using the latest technology and manufacturing techniques, ensuring that they meet the highest quality standards.
One of the key features of our carbon steel plates is their strength and durability. Our plates are highly resistant to corrosion and wear and tear, making them ideal for use in harsh environments. They are also easy to work with and can be cut, welded, and formed to meet your specific needs.
At Om Steel, we pride ourselves on providing excellent customer service and support. Our team of experts is always available to answer any questions you may have and to provide you with the necessary guidance and support to ensure that you get the best possible product.
Types of Carbon Steel Plates Available for Industrial Use
Mild Steel Plates
Mild steel plates are one of the most commonly used types of carbon steel plates in industrial settings. They are known for their low carbon content, which makes them highly ductile and easy to work with. Mild steel plates are also relatively inexpensive, making them a popular choice for many different applications.
Boiler Quality Plates
Boiler quality plates are another type of carbon steel plate that is commonly used in industrial settings. These plates are specifically designed to withstand high temperatures and pressures, making them ideal for use in boilers and other high-pressure vessels.
High Carbon Steel Plates
High carbon steel plates contain a higher percentage of carbon than mild steel plates, making them much stronger and more durable. These plates are often used in applications where strength and durability are critical, such as construction equipment, automotive parts, and heavy machinery.
Abrasion Resistant Steel Plates
Abrasion resistant steel plates are designed to withstand wear and tear caused by abrasive materials like sand, gravel, and other rough surfaces. These plates are often used in mining equipment, construction machinery, and other heavy-duty applications where abrasion resistance is essential.
Alloy Steel Plates
Alloy steel plates contain additional elements like chromium, nickel, or molybdenum that give them unique properties like increased strength or corrosion resistance. These plates can be customized to meet specific application requirements.
Heat Treated Steel Plates
Heat treated steel plates undergo a process called quenching and tempering that increases their hardness and strength. This process involves heating the plate to a high temperature then rapidly cooling it with water or oil before reheating it at a lower temperature to temper the metal.
Benefits of Using Carbon Steel Plates in Various Applications
Carbon steel plates are widely used in various applications due to their exceptional properties. These plates offer numerous benefits that make them a popular choice for many industries. In this section, we will discuss the benefits of using carbon steel plates in various applications.
Durability and Strength
One of the most significant advantages of carbon steel plates is their durability and strength. These plates have high tensile strength, which makes them resistant to wear and tear. They can withstand extreme temperatures and pressures without losing their shape or structural integrity. This property makes them ideal for use in heavy-duty machinery, construction equipment, and transportation vehicles.
Cost-Effective
Another benefit of using carbon steel plates is their cost-effectiveness. Compared to other materials like stainless steel, carbon steel is relatively inexpensive. It also requires less maintenance, reducing the overall cost of ownership over time. This makes it an attractive option for businesses looking to save money on material costs without compromising on quality.
Versatility
Carbon steel plates are highly versatile and can be used in a wide range of applications across different industries. They can be fabricated into various shapes and sizes, making them suitable for use in different parts of machinery or structures. Additionally, they can be welded easily with other metals such as aluminum or copper to create complex structures.
Corrosion Resistance
Although carbon steel is not as corrosion-resistant as stainless steel or other alloys, it still offers good resistance against rusting and corrosion when compared to other materials like aluminum or copper. The addition of certain elements like chromium or nickel can further enhance its corrosion resistance properties.
High Machinability
Carbon steel has excellent machinability properties that make it easy to work with during fabrication processes such as cutting, drilling, milling, or turning. Its machinability allows manufacturers to produce intricate designs with precision while maintaining high-quality standards.
Carbon Steel Plates
Specification
| Plates Specifications | ASTM A283 / ASME SA283, BS EN 10088-2, en 10028-7, IS 6911 |
| Sheets Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Size Range | Cold rolled ASME SA283 Grade Carbon Sheet 0.5-6.4 mm Hot rolled ASME SA283 Grade Carbon Sheet 3.0-10.0 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Plates | EN 10258/ DIN 59381) EN 10151 ASME SA283 Carbon Strips EN 10088 SA -240-Strips |
| Finish of Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Carbon Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Carbon Steel Plates
Finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS RC221. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Carbon Steel Plates
Chemical Composition
| Grades | Carbon | Manganese | Phosphorus | Sulfur | Silicon |
|---|---|---|---|---|---|
| A516 Grade 70 >2″ & ≤4″ thick | 0.30% | 0.85-1.20% | 0.025% | 0.025% | 0.15-0.40% |
| A516 Grade 70 >4″ thick | 0.31% | 0.85-1.20% | 0.025% | 0.025% | 0.15-0.40% |
| A830-1045 | 0.43-0.50% | 0.60-0.90% | 0.030% | 0.030% | N/A |
Carbon Steel Plates
Mechanical Properties
| Grades | Yield Point | Tensile |
|---|---|---|
| A516 | 36 ksi | 58-80 ksi |
Carbon Steel Plates
Physical Properties
| Physical Property | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm³ | 0.284 lb/in³ |
