Duplex stainless steel plates are a type of stainless steel alloy that combines the benefits of ferritic and austenitic stainless steels. This two-phase microstructure provides superior resistance to corrosion, stress corrosion cracking, and erosion, making duplex stainless steel plates ideal for use in harsh environments such as offshore oil rigs and chemical processing plants.
At Om Steel, we offer a range of duplex stainless steel plate grades, including S31803, S32205, S32750, and S32760, each with its own set of mechanical properties and corrosion resistance. Our plates are available in a range of sizes and thicknesses to meet your specific needs.
In addition to their resistance to corrosion, duplex stainless steel plates also offer high strength, excellent toughness, and good weldability, making them suitable for use in a variety of applications.
Whether you need duplex stainless steel plates for oil and gas, chemical processing, marine engineering, or other industrial applications, Omsteel has the products and expertise to meet your requirements. We are committed to providing high-quality products and excellent customer service.
Types of Duplex Stainless Steel Plates
Lean Duplex Stainless Steel Plates
Lean duplex stainless steel plates have a low nickel content, which makes them more affordable than other types of duplex stainless steel plates. They contain around 17-18% chromium and 4-6% nickel, making them ideal for use in applications where corrosion resistance is required but not at high levels.
Standard Duplex Stainless Steel Plates
Standard duplex stainless steel plates have a balanced composition of austenite and ferrite phases, which gives them excellent mechanical properties along with good corrosion resistance. They contain around 22-23% chromium and 5-6% nickel, making them suitable for use in harsh environments where high strength is required.
Super Duplex Stainless Steel Plates
Super duplex stainless steel plates have an even higher level of chromium (around 25%) than standard duplex stainless steel plates, along with increased molybdenum content (around 3%). This makes them highly resistant to pitting and crevice corrosion, making them ideal for use in offshore oil rigs or marine environments.
Hyper Duplex Stainless Steel Plates
Hyper duplex stainless steel plates have an even higher level of alloying elements such as chromium (around 30%) and molybdenum (around 7%), giving them superior strength and corrosion resistance properties compared to other types of duplex stainless steel plates. These plates are commonly used in chemical processing plants or desalination plants due to their excellent resistance to corrosion.
Fabrication Techniques for Duplex Stainless Steel Plates
Duplex stainless steel plates can be cut using various methods such as plasma cutting, water jet cutting, or laser cutting. However, care must be taken to avoid overheating the material and causing distortion. Bending and forming duplex stainless steel plates require higher forces than austenitic stainless steels due to their higher yield strength. Therefore, it is recommended to use a press brake with a larger capacity or multiple passes to achieve the desired shape. Drilling and tapping duplex stainless steel plates can also be challenging due to their high strength and toughness. It is recommended to use carbide-tipped drills and slow speeds with ample coolant to prevent work hardening.

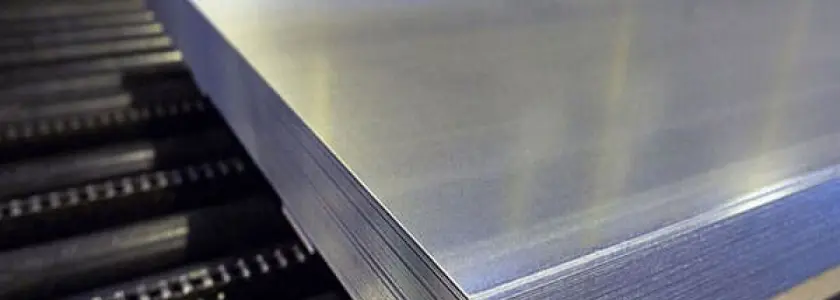

Duplex Stainless Steel Plate
Grade And Specification
| Item | Duplex Stainless Steel Plate (Hot rolled,cold rolled) |
|---|---|
| Standard | ASTM A240,JIS4304-2005,ASTM A167,EN10088-2-2005,GB/T3280-2007, etc |
| Material | 304, 316, 321, 317L, 310 , 347, 904L.,Duplex 2205, Super Duplex 2507 |
| Surface | the surface and finish of stainless steel sheet:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sandblast,Brush,etching,etc |
| Thickness | 0.01-200mm |
| Width | 1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc |

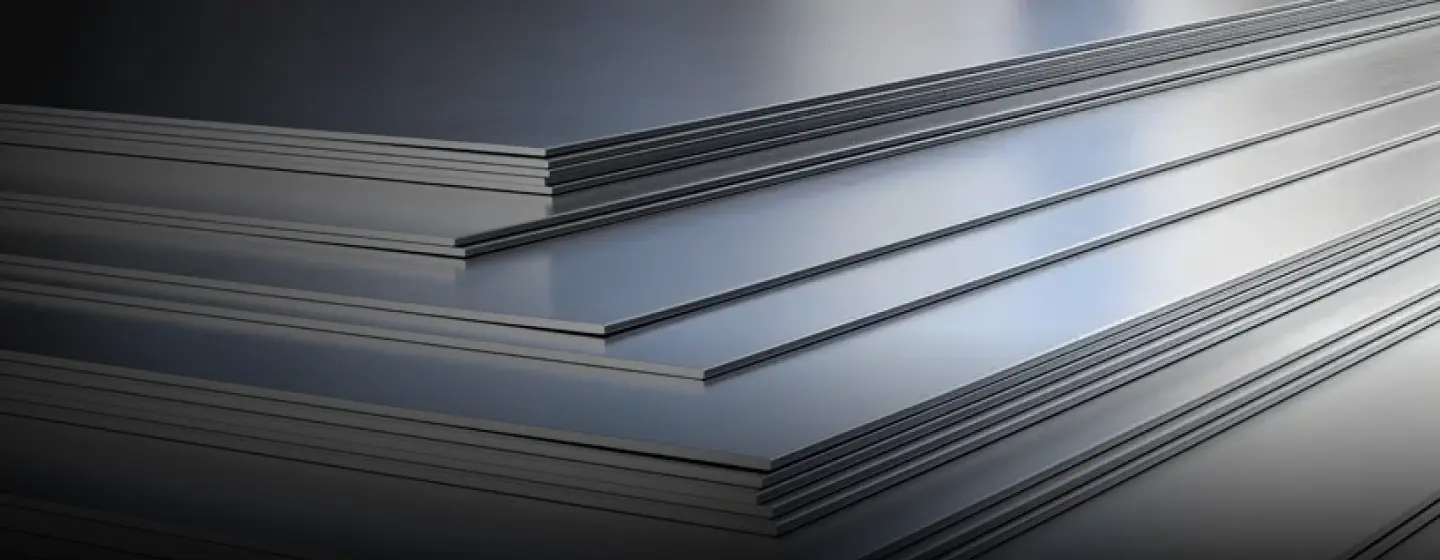

Duplex Stainless Steel Plate
Weights
| Thickness(inches) | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 | 0.06000 lbs/in² 42.184176 kg/m² | 0.315 lbs/in³ 8.72 g/cm³ |
| 1/4 | 0.08 lbs/in² 56.245568 kg/m² | |
| 3/8 | 0.121 lbs/in² 85.0714216 kg/m² | |
| 1/2 | 0.161 lbs/in² 113.1942056 kg/m² | |
| 5/8 | 0.196 lbs/in² 137.8016416 kg/m² | |
| 3/4 | 0.235 lbs/in² 165.221356 kg/m² | |
| 7/8 | 0.274 lbs/in² 192.6410704 kg/m² | |
| 1 | 0.313 lbs/in² 220.0607848 kg/m² | |
| 1 1/4 | 0.391 lbs/in² 274.9002136 kg/m² | |
| 1 1/2 | 0.47 lbs/in² 330.442712 kg/m² | |
| 1 3/4 | 0.549 lbs/in² 385.9852104 kg/m² | |
| 2 | 0.627 lbs/in² 440.8246392 kg/m² | |
| 2 1/4 | 0.705 lbs/in² 495.664068 kg/m² | |
| 2 1/2 | 0.784 lbs/in² 551.2065664 kg/m² | |
| 2 3/4 | 0.862 lbs/in² 606.0459952 kg/m² | |
| 3 | 0.941 lbs/in² 661.5884936 kg/m² |
Duplex Stainless Steel Plate
Sizes
| Size (in inches) | Size (in mm) |
|---|---|
| .125″ | 3.18 |
| .134″ | 3.4 |
| .156″ | 3.96 |
| .187″ | 4.75 |
| .250″ | 6.35 |
| .312″ | 7.92 |
| .375″ | 9.53 |
| .500″ | 12.7 |
| .625″ | 15.9 |
| .750″ | 19.1 |
| .875″ | 22.2 |
| 1″ | 25.4 |
| 1.125″ | 28.6 |
| 1.250″ | 31.8 |
| 1.500″ | 38.1 |
| 1.750″ | 44.5 |
| 2″ | 50.8 |
| 2.500″ | 63.5 |
| 3″ | 76.2 |
Duplex Steel Plates
Chemical Composition
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|
| “2205 (S31803)” | “0.03 max” | “2.0 max” | “1.0 max” | “0.03 max” | “0.02 max” | “min: 21.0 max: 23.0” | “min: 2.5 max: 3.5” | “min: 4.5 max: 6.5” | “min: 0.08 max: 0.20” |
| “2205 (S32205)” | “0.03 max” | “2.0 max” | “1.0 max” | “0.03 max” | “0.02 max” | “min: 22.0 max: 23.0” | “min: 3.0 max: 3.5” | “min: 4.5 max: 6.5” | “min: 0.14 max: 0.20” |
Duplex Steel Plates
Mechanical Composition
| Grade | 2205 | UR52N+ |
|---|---|---|
| Tensile Strength (MPa) | 620 | 770 |
| Proof Stress 0.2% (MPa) | 450 | 550 |
| Elongation AS (%) | 25 | 25 |
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Explore Our
Ask Anything
Do you have any questions?
How are Duplex Steel Plates manufactured?
What grades of Duplex Steel are used for Duplex Steel Plates?
What standards are followed for Duplex Steel Plates?
How do Duplex Steel Plates compare to other types of stainless steel?
