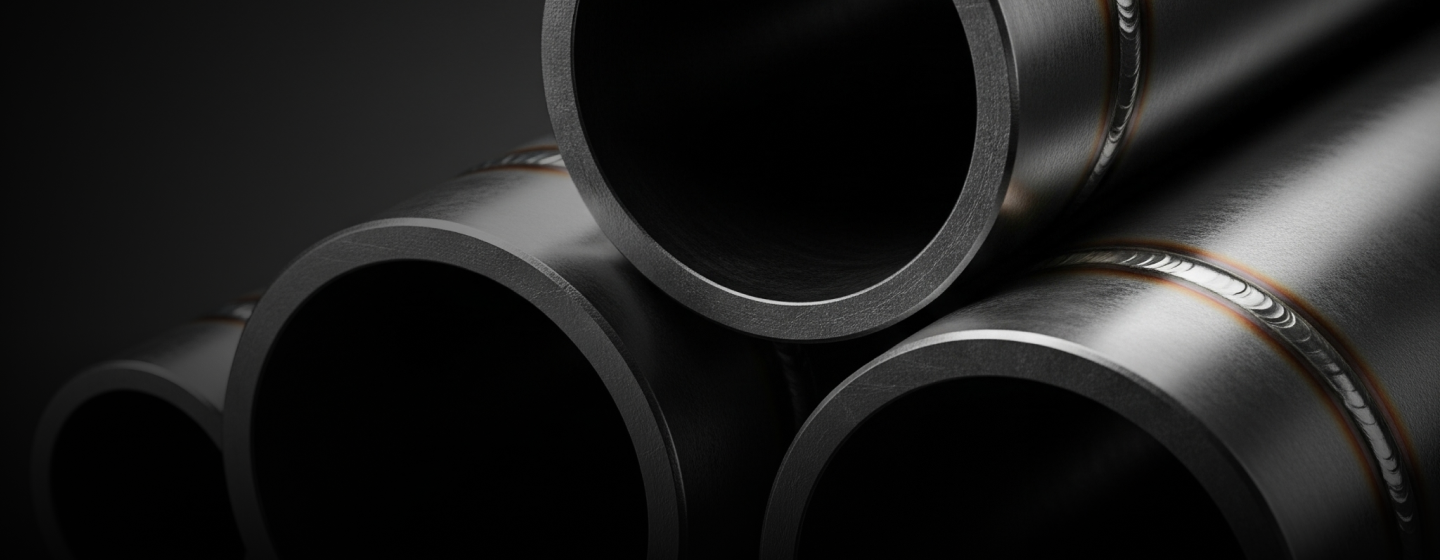

Hastelloy tubes are a type of high-performance alloy tube that is designed to withstand extreme temperatures and corrosive environments. These tubes are commonly used in heat exchangers, which are devices that transfer heat between two fluids without allowing them to mix.
Hastelloy is a type of alloy that contains nickel, chromium, and other metals, and is known for its excellent resistance to corrosion and oxidation. Inconel and Haynes are other types of alloys that are often used in the manufacture of hastelloy tubes, and they offer similar properties to hastelloy.
Hastelloy tubes are used in a variety of industries, including aerospace, gas, and plate manufacturing due to their ability to withstand harsh conditions. The B622 method is one of the most common methods used to manufacture hastelloy tubes. There are several different types of hastelloy tubes available depending on the specific application.
Types of Hastelloy UNS N Tubes
Hastelloy C-276 Tubes
One of the most popular types of Hastelloy UNS N tubes is Hastelloy C-276. This type of tube is known for its excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. It is also highly resistant to a wide range of aggressive chemicals such as sulfuric acid, hydrochloric acid, and chlorine gas. These properties make it ideal for use in chemical processing plants, pulp and paper mills, and other industrial applications where corrosive substances are present.
Hastelloy B-2 Tubes
This tube is highly resistant to hydrochloric acid at all concentrations and temperatures. It also has good resistance to sulfuric acid and other non-oxidizing acids. These properties make it ideal for use in chemical processing plants where hydrochloric acid is used extensively.
Hastelloy X Tubes
Hastelloy X tubes are known for their high-temperature strength and oxidation resistance up to 2200°F. They are commonly used in gas turbine engines, furnace components, and other high-temperature applications where strength and durability are critical.
Hastelloy G-30 Tubes
This type of tube is commonly used in the production of fertilizers, petrochemicals, and other chemicals that require the use of phosphoric acid or other oxidizing agents.
Hastelloy C-22 Tubes
This tube is known for its versatility in resisting a wide range of corrosive chemicals, including sulfuric acid, hydrochloric acid, and chlorine gas. It is commonly used in chemical processing plants and other industrial applications where aggressive chemicals are present.
Hastelloy Tube
Specification Table
| Specifications | ASTM A387 / ASME SA387 |
| Thickness | 1mm – 300mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm, 15000mm etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching Manufacturer and Supplier |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR) |
Hardness Of ASTM B622
Hastelloy Seamless Tubes
| Grade | C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| ASTM A387 Grade 5 | 0.15 max | 0.3 – 0.6 | 0.035 | 0.03 | 0.5 max | 4.00 – 6.00 | 0.45 – 0.65 |
| ASTM A387 Grade 9 | 0.15 max | 0.30 – 0.6 | 0.03 | 0.03 | 1.0 max | 8.0 – 10.0 | 0.9 – 1.1 |
| ASTM A387 Grade 11 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.5 – 0.80 | 1.0 – 1.5 | 0.45 – 0.65 |
| ASTM A387 Grade 12 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.15 – 0.4 | 0.8 – 1.15 | 0.45 – 0.6 |
| ASTM A387 Grade 22 | 0.05 – 0.15 | 0.3 – 0.6 | 0.035 | 0.035 | 0.5 max | 2.0 – 2.5 | 0.9 – 1.1 |
| Plate Surface Finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
