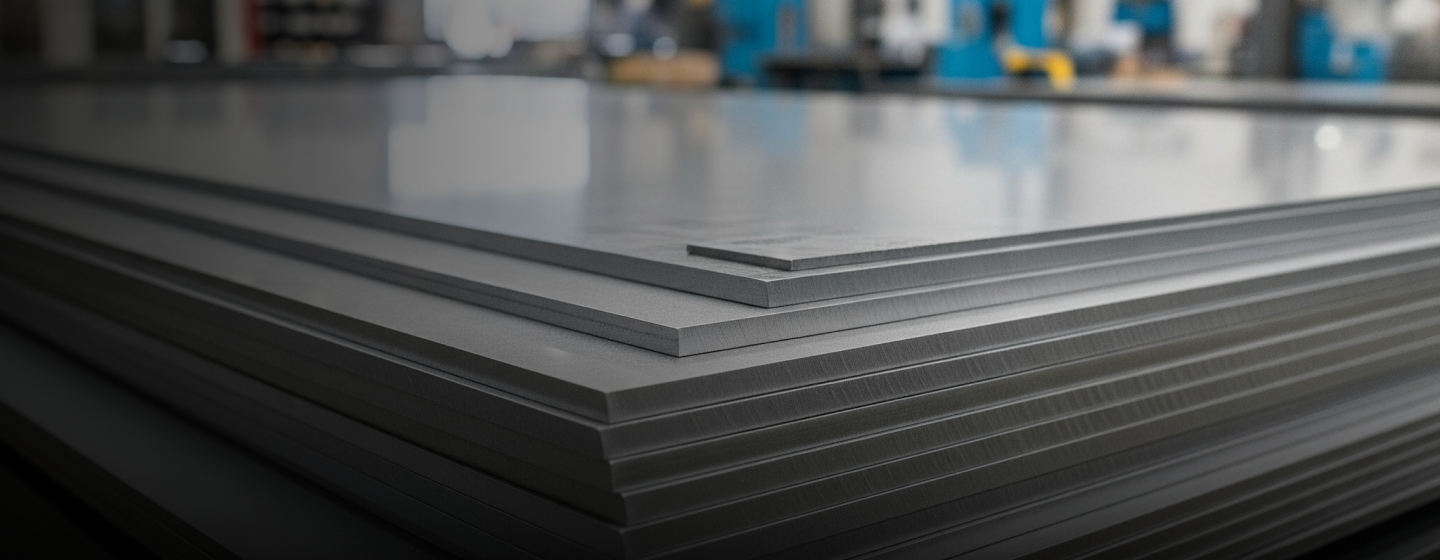

Nickel Alloy Sheets are a popular choice in industrial applications due to their superior mechanical properties and corrosion resistance. Om Steel offers a range of high-quality Nickel Alloy Sheets, each made from different grades of nickel alloys with unique features and properties.
Nickel 200 is a widely used grade of Nickel Alloy Sheets known for its excellent corrosion resistance in neutral and reducing environments. It also has good thermal and electrical conductivity, making it suitable for electrical and electronic applications. Another popular grade is Nickel 201, which has similar corrosion resistance to Nickel 200 but with lower carbon content, making it suitable for applications where lower carbon content is preferred.
Om Steel also offers Nickel Alloy Sheets made from other grades such as Nickel 400, Nickel 625, and Nickel 718. Nickel 400 is known for its high strength and excellent corrosion resistance in a variety of environments, while Nickel 625 offers exceptional resistance to high temperatures and corrosive environments. Nickel 718, on the other hand, has high strength and excellent resistance to corrosion and oxidation at high temperatures
Types of
Nickel Alloy sheets
Nickel 200/201 Sheets
These sheets are known for their excellent corrosion resistance in neutral and reducing environments. They also have good thermal and electrical conductivity, making them suitable for electrical and electronic applications.
Nickel 400 Sheets
These sheets are highly resistant to corrosion in a variety of environments, making them ideal for marine and chemical processing applications. They also have high strength and excellent resistance to stress corrosion cracking.
Nickel 625 Sheets
These sheets have exceptional resistance to high temperatures and corrosive environments, making them suitable for aerospace, chemical processing, and nuclear industries.
Nickel 718 Sheets
These sheets have high strength and excellent resistance to corrosion and oxidation at high temperatures, making them ideal for aerospace and gas turbine applications.
Nickel Alloy C22/C276 Sheets
These sheets have exceptional resistance to corrosion in highly corrosive environments such as chemical processing and pulp and paper industries.
Nickel Alloy sheets
Specification
| Specification | Details |
|---|---|
| ASTM Specification | ASTM B162 |
| Other Specifications | MSRR, AMS, BS, ASTM B162 / ASME SB162 |
| Grades |
Nickel 200 Sheets Nickel 201 Sheets Nickel 205 Sheets Nickel 211 Sheets |
| Foil and Strip Grades | Ni200, Ni201, N4, N6 |
| Length & Sizes |
1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″ Cut to size available |
| Thickness | 0.1mm to 100 mm |
| Width | 10 – 2500 mm |
| AMS | AMS 5553 |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA, NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of |
Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), Hot Rolled, Cold Rolled, Annealed, Soft Annealed, Descaled, Sheared, Tread Plate, Checker Plate |
| ASTM Standards | ASTM A162, GB/T2054, DIN17750:2002, ASTM B127, ASTM B435, ASTM B582, ASTM B575, ASTM B168, ASTM B443, ASTM B463, ASTM B626, ASTM B536, etc. |
Nickel Alloy Sheet
Chemical composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|
| N4 | 99.99 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Ni201 | 99 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99 | 0.2 | 0.3 | 0.3 | 0.15 | / | 0.01 | / | 0.4 |
Nickel Alloy sheets
Sizes
| SIZE | 200/1 | 400 | 600 | 601 | 625 | 718 | 800 | 825 | AL6XN | C276 | 20 | A286 | SIZE in mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| .125″ | X | X | X | X | X | X | X | X | X | X | X | X | 3.18 |
| .134″ | – | – | – | – | – | – | – | – | – | X | – | – | 3.4 |
| .156″ | X | X | X | – | X | – | X | X | – | – | X | – | 3.96 |
| .187″ | X | X | X | X | X | X | X | X | X | X | X | X | 4.75 |
| .250″ | X | X | X | X | X | X | X | X | X | X | X | X | 6.35 |
| .312″ | X | – | X | – | – | – | X | X | – | X | X | – | 7.92 |
| .375″ | X | X | X | – | X | – | X | X | – | X | X | – | 9.53 |
| .500″ | X | X | X | X | X | X | X | X | X | X | X | X | 12.7 |
| .625″ | X | X | X | – | X | X | X | X | – | X | X | – | 15.9 |
| .750″ | X | X | X | X | X | – | X | X | – | X | X | – | 19.1 |
| .875″ | – | – | – | – | X | – | X | – | – | – | X | – | 22.2 |
| 1″ | X | X | X | – | X | X | X | X | X | X | X | X | 25.4 |
| 1.125″ | – | – | – | – | – | – | X | – | – | – | – | – | 28.6 |
| 1.250″ | X | X | X | – | – | – | X | X | – | X | X | – | 31.8 |
| 1.500″ | X | X | X | – | – | – | X | X | – | X | X | – | 38.1 |
| 1.750″ | – | – | X | – | – | – | – | – | – | – | – | – | 44.5 |
| 2″ | – | X | X | – | – | – | X | – | – | X | – | – | 50.8 |
| 2.500″ | – | – | X | – | – | – | X | – | – | X | – | – | 63.5 |
| 3″ | – | – | – | – | – | – | – | – | – | – | X | – | 76.2 |
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Explore Our
Ask Anything
Do you have any questions?
What are the advantages of using nickel alloy sheets?
What are the common grades of Nickel Alloy Sheets?
What types of nickel alloy sheets are available?
What is the standard size of nickel alloy sheets?
