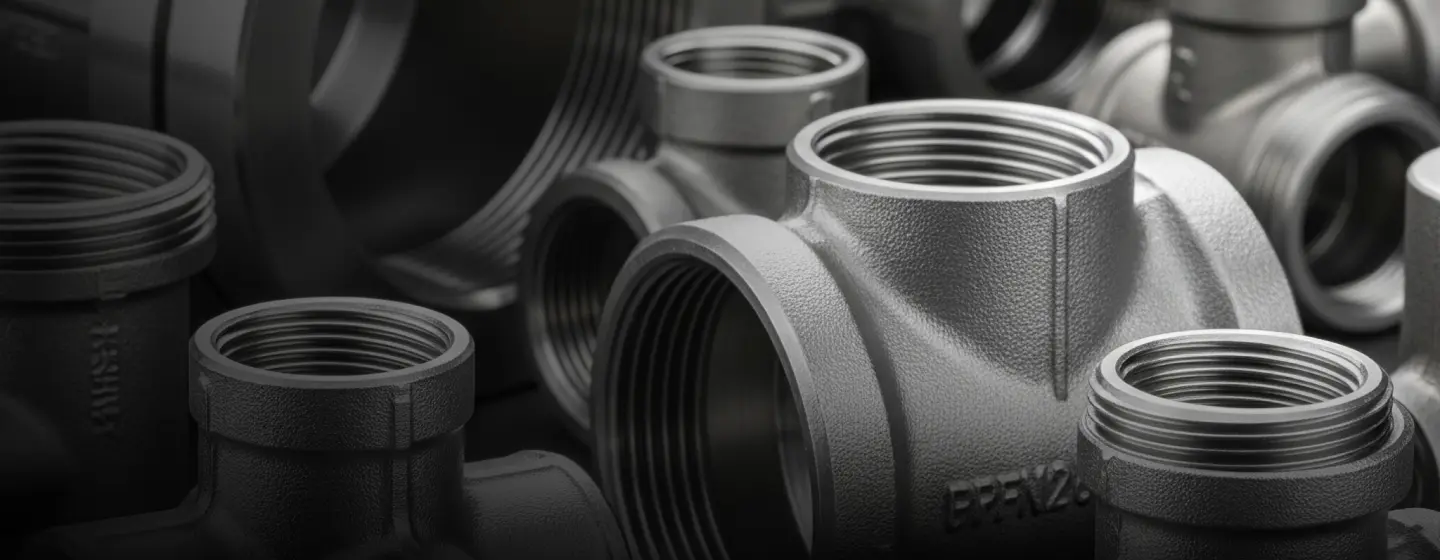

Super duplex stainless steel forged fittings are used in various industrial applications due to their exceptional strength, durability, and resistance to corrosion. At Om Steel, we offer a wide range of super duplex stainless steel forged fittings that are designed to meet the unique needs of our clients.
Super duplex stainless steel forged fittings are available in various types, including elbow, tee, cross, coupling, plug, and others. These fittings are made by forging the super duplex stainless steel, which enhances their strength and durability.
At Om Steel, we offer various grades of super duplex stainless steel forged fittings, including S32750, S32760, S32550, and others. These grades have different properties and are used in various applications based on their strength, corrosion resistance, and other factors. For instance, S32750 is a high-strength grade that is commonly used in oil and gas industry applications, while S32760 is a super duplex grade with excellent corrosion resistance that is often used in marine and chemical processing industries.
Super duplex stainless steel forged fittings offer exceptional resistance to corrosion, making them suitable for use in harsh environments. They also offer high strength and excellent heat resistance, making them ideal for high-temperature applications. Om Steel is a trusted manufacturer of high-quality super duplex stainless steel forged fittings that offer exceptional features such as high strength, superior corrosion resistance, and heat resistance.
Types of Wrought Ferritic/Austenitic Super Duplex Forged Fittings
There are different types of wrought ferritic/austenitic super duplex forged fittings available in the market. The most common ones include elbows, tees, reducers, couplings, caps, crosses, and unions. Each type has its unique features that make them suitable for specific applications.
Elbows
Elbows are used to change the direction of flow in pipelines or plumbing systems. They come in different angles such as 45° and 90° depending on the application requirements.
Tees
Tees are used to join three pipes or tubes together at right angles. They come in equal or unequal sizes depending on the application requirements.
Reducers
Reducers are used to connect pipes or tubes with different diameters. They can either be concentric or eccentric depending on whether they maintain the same centerline or not.
Couplings
Couplings are used to join two pipes or tubes together end-to-end. They come in different sizes and materials depending on the application requirements.
Caps
Caps are used to seal off the end of a pipe or tube. They come in different sizes and materials depending on the application requirements.
Crosses
Crosses are similar to tees but have four openings instead of three. They can be equal or unequal depending on the application requirements.
Unions
Unions are used to connect two pipes or tubes together in a way that allows them to be easily disconnected for maintenance or repair purposes.
Benefits of Super Duplex Forged Fittings
Corrosion Resistance
One of the most significant benefits of super duplex forged fittings is their outstanding corrosion resistance. These fittings are highly resistant to corrosion caused by harsh chemicals, acids, and seawater. This makes them ideal for use in offshore oil rigs, chemical plants, and other harsh environments where corrosion can cause severe damage to equipment.
Strength and Durability
Super duplex forged fittings are incredibly strong and durable. They can withstand high pressure, extreme temperatures, and heavy loads without cracking or breaking. This makes them ideal for use in pipelines, power generation facilities, and other industrial settings where reliability is critical.
Versatility
Super duplex forged fittings are highly versatile and can be used in a wide range of applications. They come in various shapes and sizes to fit different piping systems’ needs, making them suitable for use in petrochemical plants, refineries, water treatment facilities, etc.
Super Duplex Forged Pipe Fittings
Specification
| Grade Specification | ASTM A182 / ASME SA182 |
|---|---|
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Grades | S32750 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Dimensions | MSS SP-95-2006, BS 3799 |
| Thickness | Standard, Extra Heavy, Schedule 160, or Double Extra Heavy |
| Ends | Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification |
| Finish | Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of ASTM A182 UNS S32750 Super Duplex Steel Swage Nipples |
Super Duplex Steel Fittings
Available Types & Shapes
| Super Duplex Steel Forged Pipe Fittings | Super Duplex Steel High Pressure Forged Fittings |
| Super Duplex Steel Socket Weld Fittings | Super Duplex Steel Threaded Fittings |
| Super Duplex Steel Socket Weld 90 Deg Elbow | Super Duplex Steel Socket Weld 45 Degree Elbow |
| Super Duplex Steel Threaded 90 Deg Elbow | ANSI Super Duplex Steel Screwed 45 Degree Elbow |
| Super Duplex Steel Threaded Half Coupling | Super Duplex Steel Threaded Tee Exporter |
| Super Duplex Steel Socket Weld Cross | Super Duplex Threaded / Screwed Cross |
| Super Duplex Steel Socket Weld Half Coupling | Super Duplex Steel Forged Tee |
| Super Duplex Steel Full Coupling | Super Duplex Steel Coupling |
| Super Duplex Socket Weld Cap | Ferritic / Austenitic Super Duplex Steel Screwed Cap |
| ANSI B16.11 Super Duplex Steel Socket Weld Union | Super Duplex Steel Reducing Tee |
| Super Duplex Steel Screwed Hex Plug | Super Duplex Steel Square Plug |
| Super Duplex Steel Threaded / Screwed Union | Super Duplex Steel Threaded / Screwed Bushing |
| Super Duplex Steel Hex Nipples | Super Duplex Steel Swage Nipple |
| Super Duplex Threaded / Screwed Pipe Nipple | Super Duplex Threaded Street Elbow |
| Super Duplex Steel Socket weld Unequal Tee | Super Duplex Steel ASME B16.11 Threaded Unequal Tee |
Super Duplex
UNS S32750 Equivalent
| Standard | Werkstoff NR. | UNS |
|---|---|---|
| Super Duplex 2507 | 1.441 | S32750 / S32760 |
ASTM A182 UNS S32750
Forged Fittings Chemical Composition
| Grade | CM | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Super Duplex Steel Seamless
Forged Fittings Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
