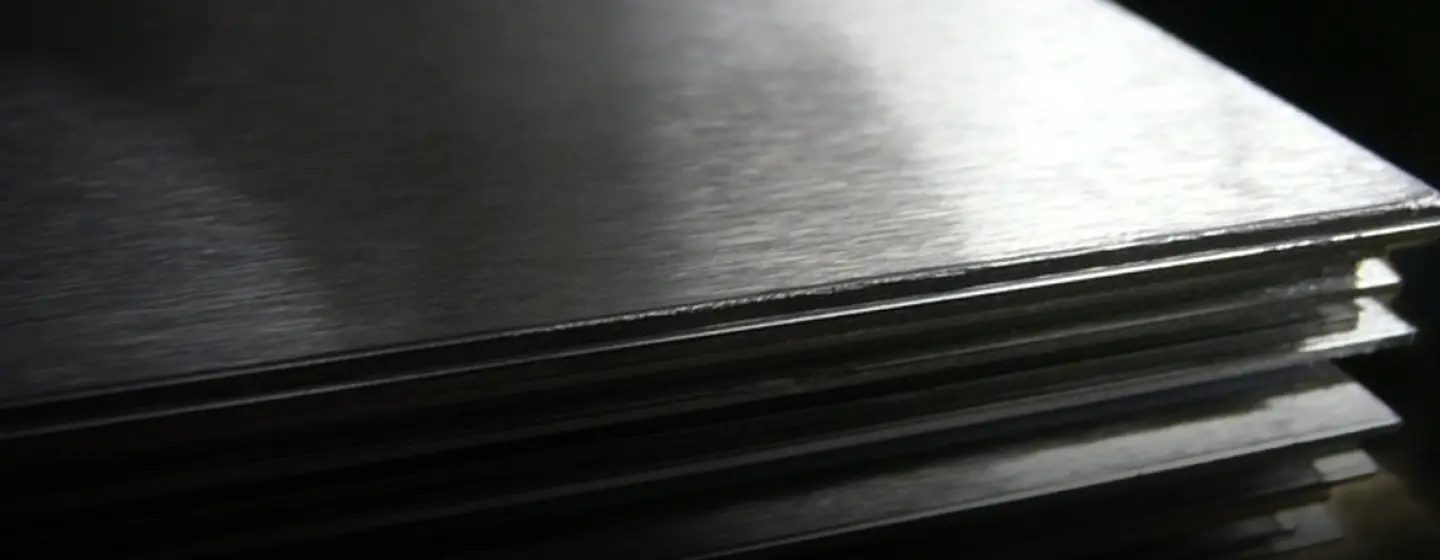

Super duplex stainless steel sheets are a type of stainless steel alloy that contains high levels of chromium, molybdenum, and nitrogen, making them highly resistant to corrosion, stress corrosion cracking, and pitting. Super duplex stainless steel sheets are ideal for use in harsh environments such as offshore oil rigs, chemical processing plants, and desalination plants.
At Om Steel, we offer a range of super duplex stainless steel sheet grades, including S32750 and S32760, each with its own set of mechanical properties and corrosion resistance. Our sheets are available in a range of sizes and thicknesses to meet your specific needs.
In addition to their superior corrosion resistance, super duplex stainless steel sheets also offer high strength and durability, making them ideal for use in heavy-duty applications. They also have excellent weldability, making them easy to fabricate and install.
Wide Range of Super duplex stainless steel sheets
LDX 2101® is a low-nickel alternative to standard austenitic stainless steels such as Type 304L or 316L which can save cost while maintaining good mechanical and corrosion-resistant properties.
2205® is one of the most widely used types of duplex stainless steel due to its excellent combination of strength and corrosion resistance properties.
2507® is a super duplex stainless steel that offers even higher levels of strength and corrosion resistance than 2205®, making it an excellent choice for highly corrosive environments.
Zeron® 100 is a highly alloyed super duplex stainless steel that offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in seawater environments.
Ferralium® 255 is a high-strength super duplex stainless steel that offers excellent resistance to chloride stress corrosion cracking and erosion-corrosion.
Super Duplex Stainless Steel Sheets
Specification
| S32750 Sheets Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| S32750 Sheets Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Super Duplex S32750 Sheets Size Range | “Cold rolled ASME SA240 Grade S32750 Super Duplex Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade S32750 Super Duplex Steel Sheet 3.0-10.0 mm” |
| S32750 Super Duplex Steel Sheets Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Super Duplex Steel S32750 Sheets Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Super Duplex Steel S32750 Sheets Thickness | 0.3 mm to 120 mm |
| International Standard of Super Duplex Steel S32750 Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (Width / Thickness) of Super Duplex Steel S32750 Sheets | EN 10258/ DIN 59381) EN 10151 ASME SA240 S32750 Super Duplex Steel Strips EN 10088 SA -240-S32750 Strips |
| Finish of Super Duplex Steel S32750 Sheets | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Super Duplex Steel S32750 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Super Duplex Stainless Steel Sheets
Sheets finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to give appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R4001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using an abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface is finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Super Duplex Stainless Steel Sheets
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Super Duplex Stainless Steel Sheets
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| S32750 / S32760 | 7.8 | 0.281 | 1350 | 2460 |
Application Industry
Serving Diverse Sectors with Precision & Performance
Om Steel supplies premium steel and alloy products to a wide range of industries, ensuring strength, durability, and performance in every application. From construction, oil & gas, and automotive to power plants, shipbuilding, and chemical processing — our materials meet the demands of critical operations. Trusted by industry leaders, we deliver solutions that stand up to the toughest challenges.
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Defence & Aerospace
Oil/Gas
Speciality Valves & Vacuum
Precision Components
Explore Our
Ask Anything
Do you have any questions?
What are super duplex stainless steel sheets used for?
What are the benefits of using super duplex stainless steel sheets?
What grades of super duplex stainless steel are available in sheet form?
What is the manufacturing process for super duplex stainless steel sheets?
