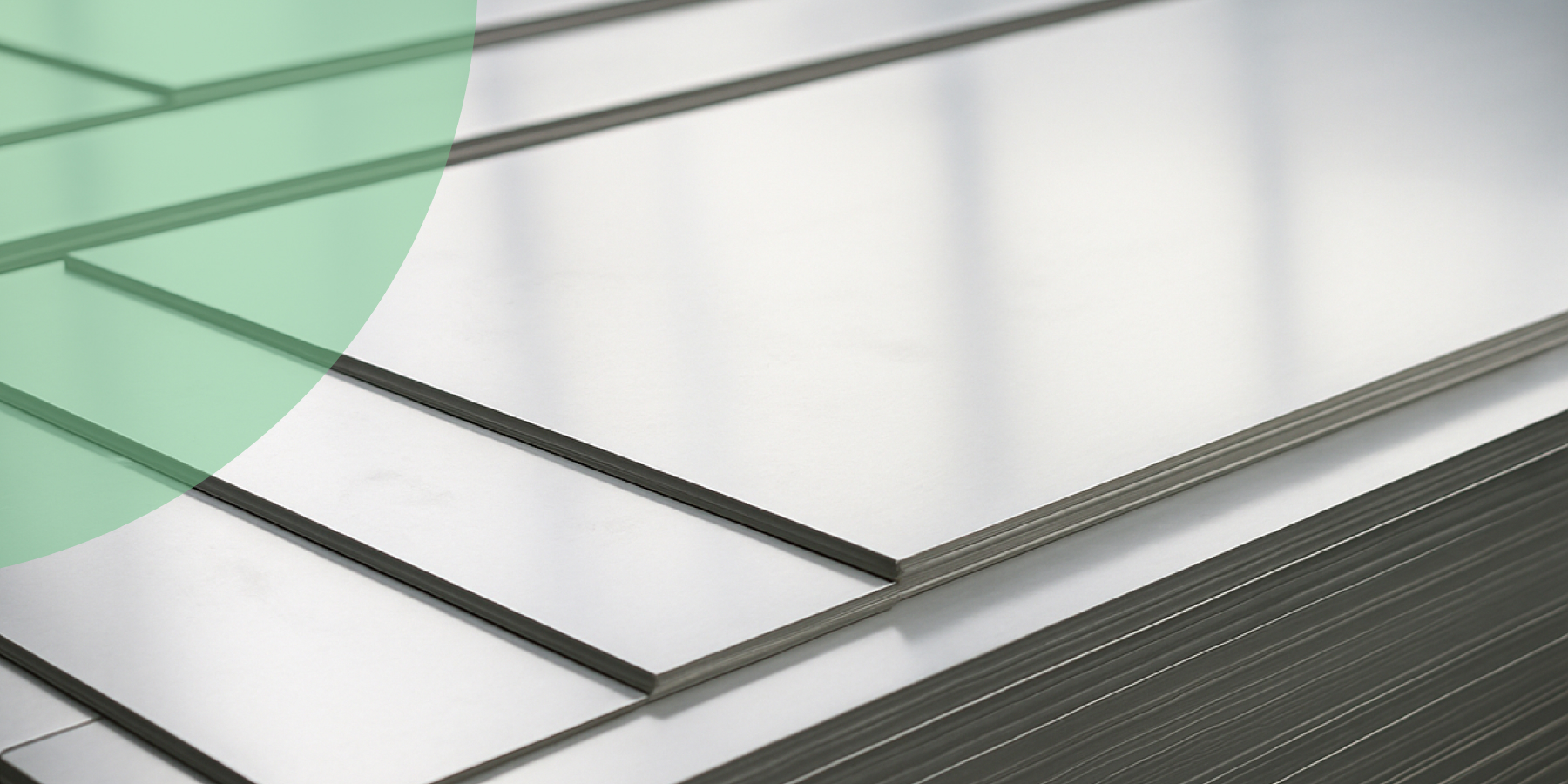

Stainless steel sheets are essential materials in industries ranging from food processing to marine applications. Among the hundreds of stainless steel grades available, 304 and 316 stand out as the most commonly used. Understanding their differences is crucial for selecting the right material for your specific needs.

Understanding Stainless Steel Basics

Stainless steel is an iron-based alloy containing a minimum of 10.5% chromium, which forms a passive oxide layer that protects against corrosion. Both 304 and 316 are austenitic stainless steels, meaning they have a face-centered cubic crystal structure that provides excellent formability, weldability, and corrosion resistance.

Chemical Composition Comparison

304 Stainless Steel:

• Chromium: 18-20%
• Nickel: 8-10.5%
• Carbon: ≤0.08%
• Manganese: ≤2%
• Silicon: ≤1%
• Iron: Balance

316 Stainless Steel:

• Chromium: 16-18%
• Nickel: 10-14%
• Molybdenum: 2-3%
• Carbon: ≤0.08%
• Manganese: ≤2%
• Silicon: ≤1%
• Iron: Balance

The key difference is the addition of 2-3% molybdenum in 316, which significantly enhances corrosion resistance, particularly against chlorides and acids.

Corrosion Resistance

304 Grade: Grade 304 offers excellent corrosion resistance in most atmospheric environments and many chemical solutions. It performs well in urban and rural settings but may suffer from pitting and crevice corrosion in chloride-rich environments like coastal areas or facilities using de-icing salts. It’s suitable for indoor applications and environments without significant chloride exposure.

316 Grade: The molybdenum content in 316 provides superior resistance to pitting and crevice corrosion, especially in chloride environments. This makes it ideal for marine applications, coastal constructions, chemical processing plants, and pharmaceutical equipment. It also offers better resistance to sulfuric, hydrochloric, and acetic acids compared to 304.

Mechanical Properties

Both grades share similar mechanical properties:

Tensile Strength:

• 304: 515 MPa (75,000 psi) minimum
• 316: 515 MPa (75,000 psi) minimum

Yield Strength:

• 304: 205 MPa (30,000 psi) minimum
• 316: 205 MPa (30,000 psi) minimum

Elongation: Both offer approximately 40% elongation, ensuring good formability and ductility.

The mechanical properties are comparable, making the choice between them primarily dependent on environmental factors rather than strength requirements.

Temperature Performance

304 Grade: Performs well in temperatures ranging from -196°C to 870°C (-320°F to 1598°F). It maintains good oxidation resistance up to 870°C in intermittent service.

316 Grade: Offers a similar temperature range but superior performance in high-temperature applications involving corrosive media. The molybdenum content provides better creep and stress-rupture properties at elevated temperatures.

Fabrication and Welding

Formability: Both grades exhibit excellent formability and can be deep-drawn, bent, and formed using standard techniques. They work-harden during cold working, which may require intermediate annealing for extensive forming operations.

Weldability: Both 304 and 316 are readily weldable using common techniques including TIG, MIG, and resistance welding. Neither requires preheating or post-weld heat treatment for most applications. However, 316 may require slightly higher heat input due to its molybdenum content.

Machinability: Both grades have similar machinability ratings, approximately 45% of free-machining steel. They require sharp tools, positive rake angles, and adequate coolant to prevent work hardening.

Applications by Grade

304 Stainless Steel Applications:

• Kitchen equipment and appliances
• Food processing equipment
• Architectural panels and trim
• Fasteners and springs
• Heat exchangers (mild environments)
• Automotive trim and molding
• Chemical containers for non-chloride solutions
• Indoor railings and furniture

316 Stainless Steel Applications:

• Marine equipment and fittings
• Chemical processing equipment
• Pharmaceutical manufacturing equipment
• Coastal construction projects
• Medical surgical instruments
• Boat fittings and components
• Outdoor applications in harsh environments
• Paper and pulp processing
• Water treatment facilities
• Oil and gas industry equipment

Cost Considerations

Grade 304 is generally 10-20% less expensive than 316 due to the absence of molybdenum, which is a costly alloying element. For projects where corrosion resistance requirements are moderate, 304 offers significant cost savings without compromising performance.

However, in corrosive environments, choosing 304 to save initial costs may lead to premature failure, requiring costly replacements. The long-term total cost of ownership should be evaluated, not just the initial material cost.

Magnetic Properties

Both 304 and 316 are non-magnetic in their annealed condition. However, both can become slightly magnetic when cold-worked during forming operations. This slight magnetic response doesn’t affect their corrosion resistance or other functional properties.

Maintenance and Cleaning

Both grades require minimal maintenance and can be cleaned using mild detergents and water. For stubborn stains, specialized stainless steel cleaners can be used. Regular cleaning helps maintain the passive oxide layer and prevents surface contamination that could lead to corrosion.

Avoid using chloride-containing cleaners or steel wool, which can damage the protective oxide layer and introduce contaminants.

Making the Right Choice

Choose 304 when:

• Budget constraints are significant
• Application is indoors or in non-corrosive environments
• Chloride exposure is minimal
• Aesthetic appearance and formability are priorities

Choose 316 when:

• Marine or coastal environments are involved
• Chemical or pharmaceutical processing is required
• Chloride exposure is expected
• Long-term durability in harsh conditions is essential
• Medical or surgical applications demand highest purity

Conclusion

While both 304 and 316 stainless steel sheets offer excellent properties, the choice depends on your specific application requirements and environmental conditions. Grade 304 provides an economical solution for most general-purpose applications, while 316 offers superior corrosion resistance for demanding environments. Understanding these differences ensures optimal material selection, balancing performance requirements with budget considerations for successful project outcomes.
