How to Choose the Right Hastelloy Pipe & Tube Fittings
This guide will help you make informed decisions when choosing Hastelloy fittings for your projects, focusing on popular grades like Hastelloy G30 and Hastelloy C276.
Hastelloy, a nickel-based alloy known for its outstanding corrosion resistance and durability in severe environments, is often the material of choice for critical industrial applications. When it comes to selecting Hastelloy pipe and tube fittings, understanding the various grades, compatibility, and specific applications is essential. This guide will help you make informed decisions when choosing Hastelloy fittings for your projects, focusing on popular grades like Hastelloy G30 and Hastelloy C276.
Understanding Hastelloy Alloys
Hastelloy alloys, particularly the Hastelloy alloy pipe, are renowned for their ability to withstand high temperatures and corrosive environments, making them ideal for chemical processing, aerospace, and oil and gas industries. Each grade of the hastelloy piping system has unique properties tailored to specific applications.

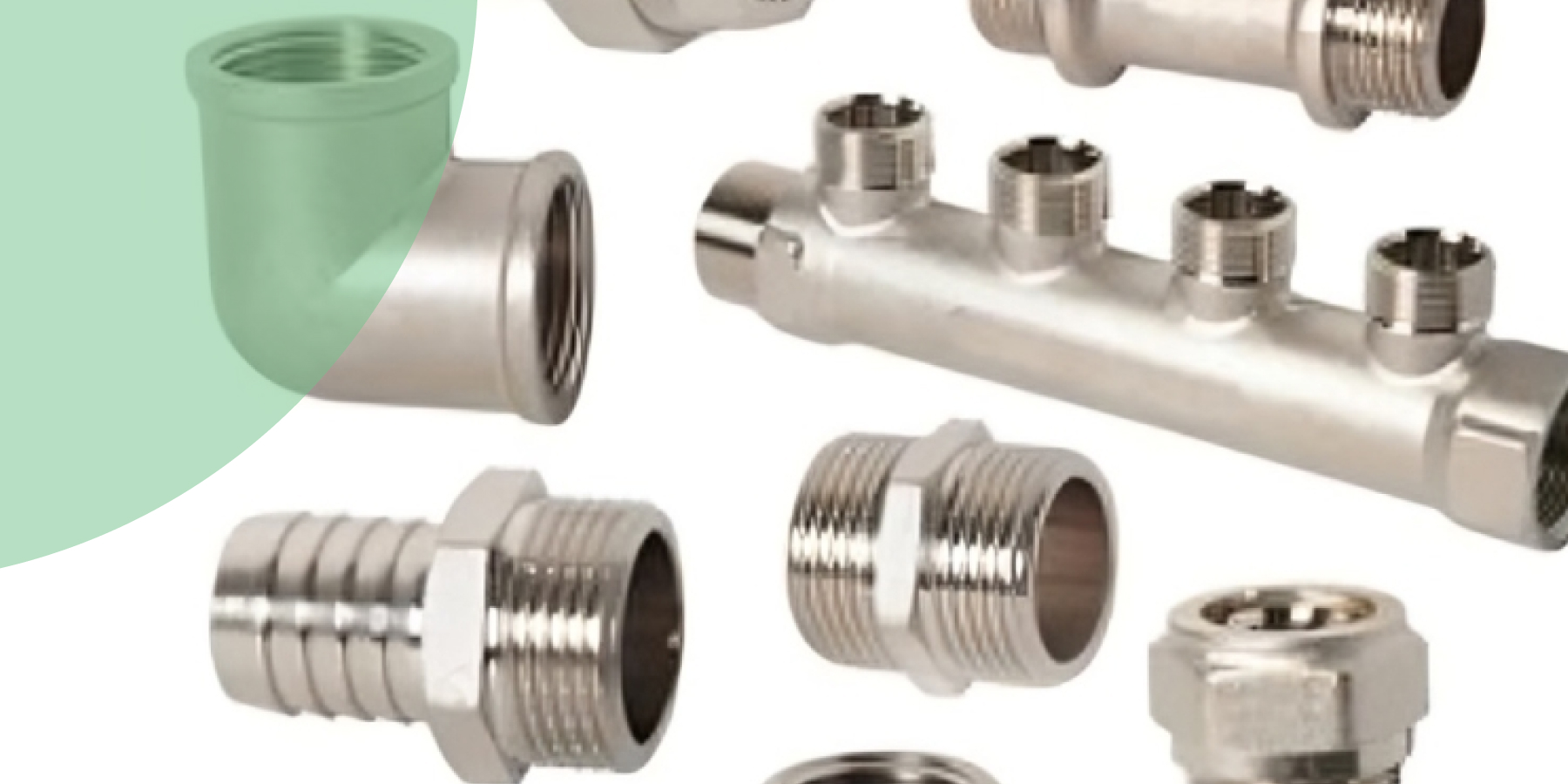

Key Hastelloy Grades:
- Hastelloy C276: Known for its exceptional corrosion resistance to both oxidising and reducing environments.
- Hastelloy G30: Offers enhanced resistance to “wet process” phosphoric acid environments and other highly oxidising media.
These characteristics make Hastelloy alloy pipe a preferred material for piping and tube fittings in systems that encounter corrosive chemicals and high temperatures.
Choosing Hastelloy Pipe and Tube Fittings
Selecting the right Hastelloy piping system fittings involves several considerations to ensure they meet the operational demands and longevity expectations of your Hastelloy alloy pipe.
1. Material Compatibility
- Corrosion Resistance: Choose a Hastelloy grade that offers the best resistance to the media used in your system. For instance, Hastelloy C276 is highly effective against a wide range of chemicals, while Hastelloy G30 is better suited for environments with phosphoric acid.
- Temperature Resistance: Ensure the Hastelloy grade can handle the operational temperature ranges of your system without degrading.
2. Types of Fittings
- Hastelloy Pipe Fittings: These include elbows, tees, reducers, and caps, which are essential for modifying and managing the flow within pipelines.
- Hastelloy Tube Fittings: Often used in smaller diameter piping systems, they include compression fittings, tube nuts, and ferrules, providing strong, leak-proof connections.
3. Forged vs. Cast Fittings
- Forged Fittings: Offer better strength, fatigue resistance, and typically feature a finer grain structure, making them preferable for high-pressure applications.
- Cast Fittings: Generally more cost-effective, but can have variations in consistency and strength. Suitable for less critical applications where pressure and stress are lower.
Application-Specific Selection
Choosing the right fitting for a hastelloy piping system also depends heavily on its specific application.
Chemical Processing:
- Needs: Corrosion resistance from acids, solvents, and other harsh chemicals.
- Recommendation: Hastelloy C276 for its broad corrosion resistance capabilities.
Oil and Gas:
- Needs: Ability to withstand sulfide stress cracking and corrosive substances.
- Recommendation: Hastelloy C276 for its resilience in sour gas environments.
Power Generation:
- Needs: High-temperature stability and corrosion resistance.
- Recommendation: Hastelloy G30 for its excellent performance in high-temperature oxidising environments.
Installation and Maintenance Tips
- Professional Installation: Ensure that fittings are installed by qualified professionals to avoid leaks and ensure system integrity.
- Regular Inspection and Maintenance: Periodically check for signs of wear or corrosion and replace fittings as necessary to maintain system performance and safety.
Conclusion
Selecting the right Hastelloy pipe and tube fittings is critical for ensuring the longevity and safety of industrial piping systems exposed to harsh conditions. By understanding the specific requirements of your applications and the unique properties of Hastelloy grades, you can optimise your systems for performance and reliability. Whether for chemical processing, oil and gas, or power generation, Hastelloy fittings provide a robust solution that stands up to the challenges of aggressive environments.
